Chapter 18 Multicast
GS-2024 User’s Guide
136

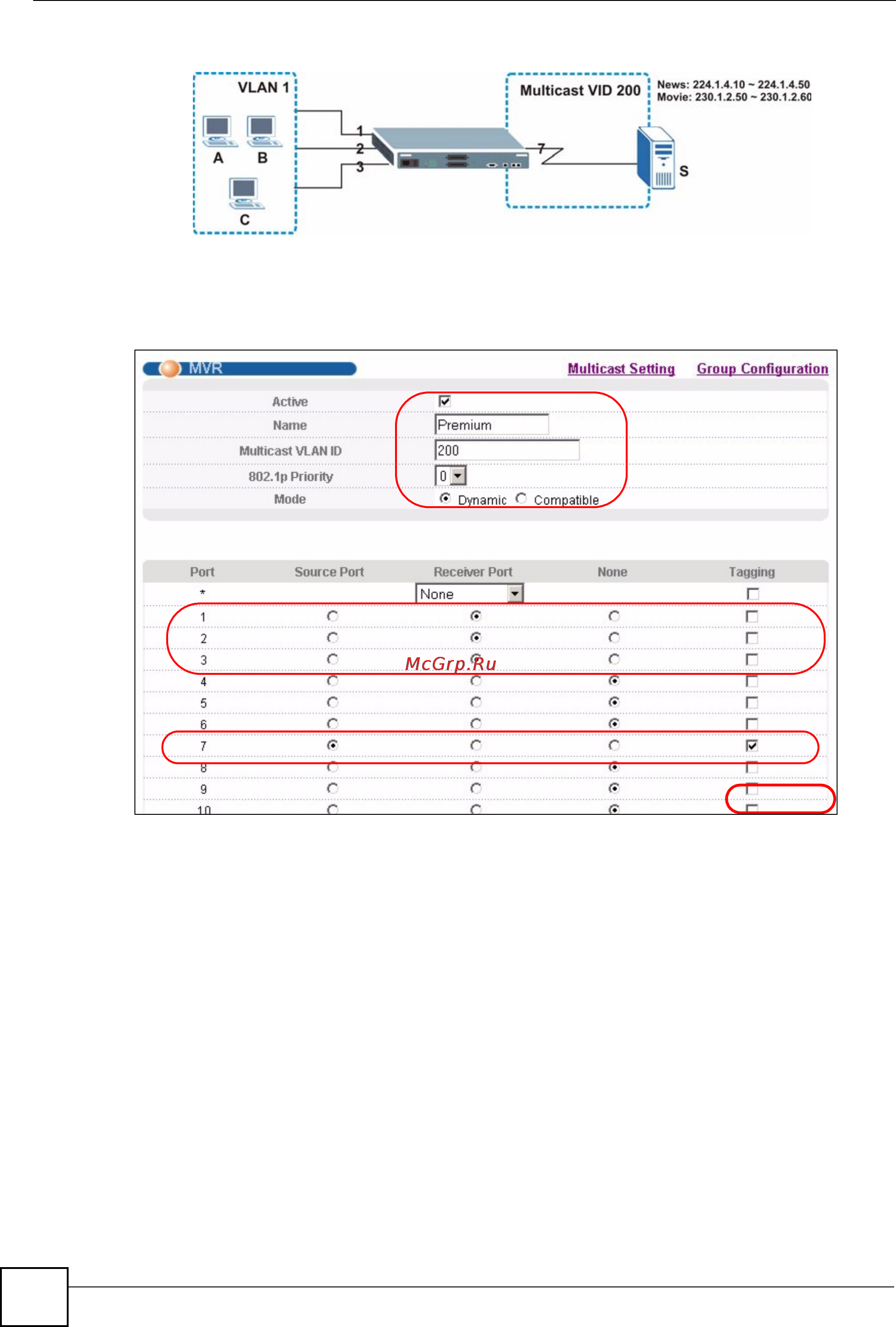

Figure 69 MVR Configuration Example
To configure the MVR settings on the Switch, create a multicast group in the MVR screen and
set the receiver and source ports.
Figure 70 MVR Configuration Example
To set the Switch to forward the multicast group traffic to the subscribers, configure multicast
group settings in the Group Configuration screen. The following figure shows an example
where two multicast groups (News and Movie) are configured for the multicast VLAN 200.
example
