1 - 9
GEN
INFO

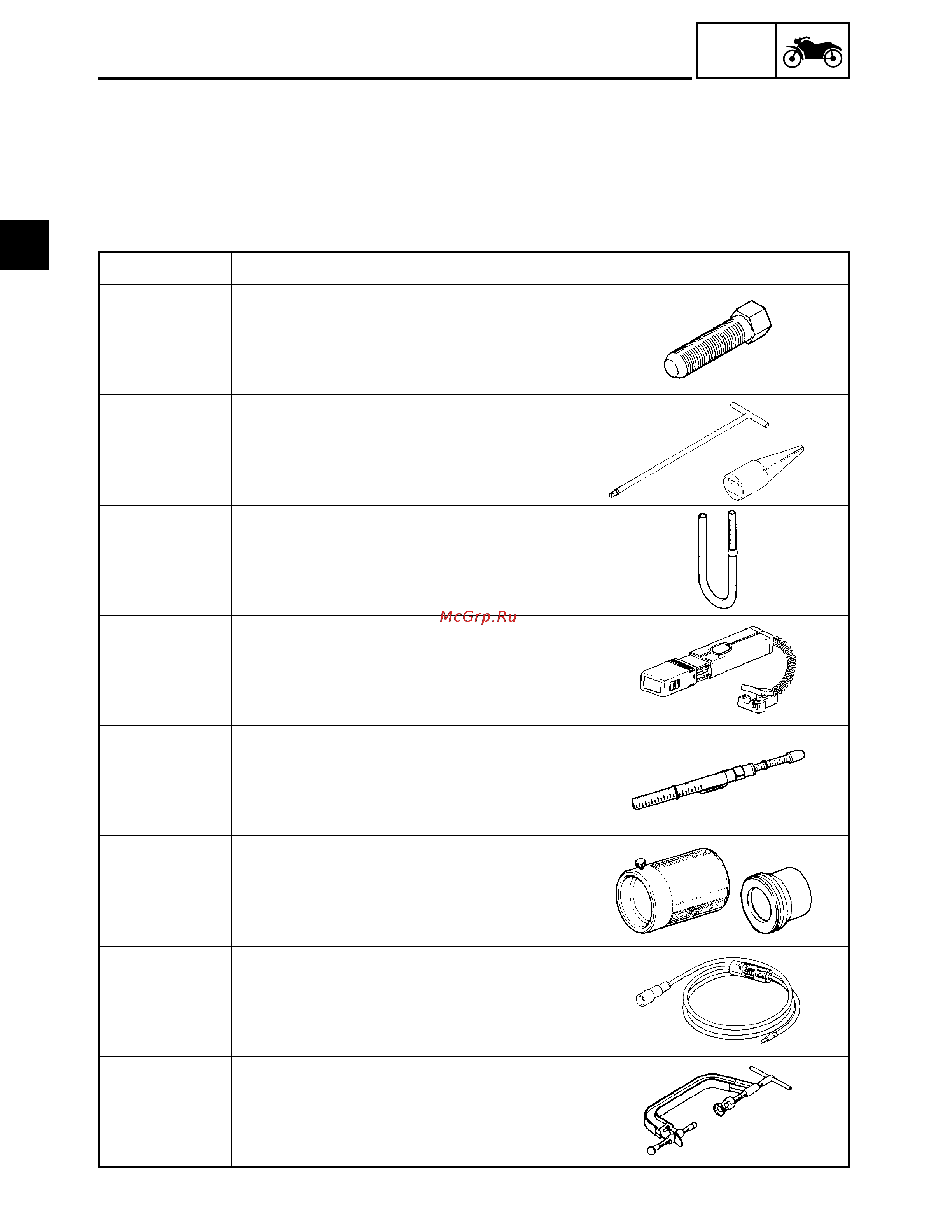

SPECIAL TOOLS
EAS00027
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly.
Use only the appropriate special tools as this will help prevent damage caused by the use of
inappropriate tools or improvised techniques. Special tools, part numbers, or both may differ
depending on the country.
When placing an order, refer to the list provided below to avoid any mistakes.
Tool No. Tool name/Function Illustration
YM-01080-A Flywheel puller
This tool is used to remove the generator
rotor.
T-handle
YM-01326
Damper rod
holder
YM-1300-1
T-handle
Damper rod holder
These tools are used to hold the cartridge
cylinder when loosening or tightening the
cartridge cylinder bolt.
YM-01312-A
Fuel level gauge
This tool is used to measure the fuel level
in the float chamber.
YM-33277-A
Timing light
This tool is used to check the ignition tim-
ing.
YM-03170
Belt tension gauge
This tool is used to measure the drive belt
slack.
Fork seal
driver weight
YM-33963
Adapter
YM-8020
Fork seal driver weight
Adapter
These tools are used to install the front
fork’s oil seal and dust seal.
YM-34487
Dynamic spark tester
This tool is used to check the ignition sys-
tem components.
YM-04019
Valve spring compressor
This tool is used to remove or install the
valve assemblies.
1
