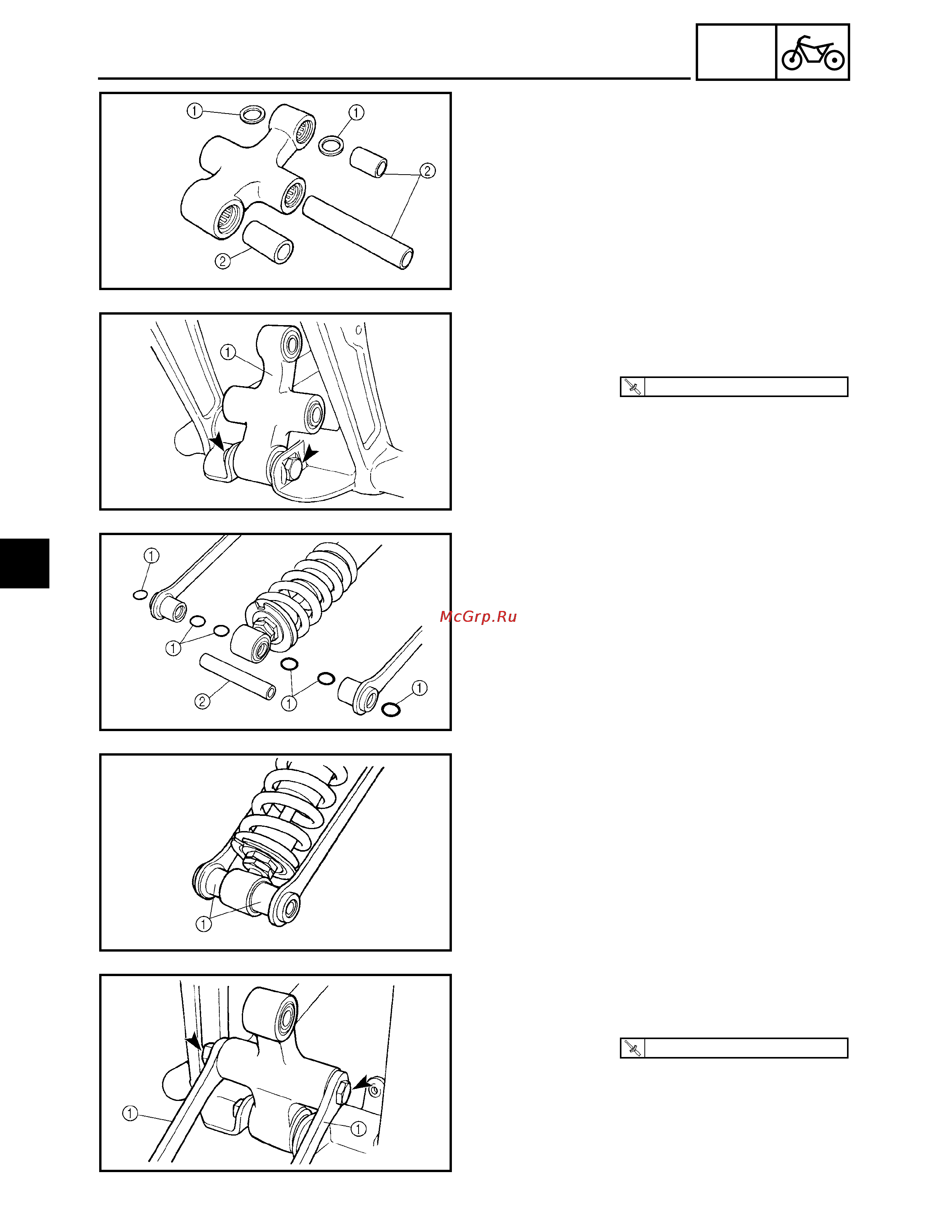

Yamaha XV16ALC (1998) [210/449] Rear shock absorber and swingarm
![Yamaha XV16ALC (1998) [210/449] Rear shock absorber and swingarm](/views2/1121376/page210/bgd2.png)
4 - 87
CHAS
REAR SHOCK ABSORBER AND SWINGARM
3. Install:
• bearings
• oil seals 1
• spacers 2
4. Install:
• relay arm 1
(onto the swingarm)
T
R
.
.
59 Nm (5.9 m · kg, 43 ft · lb)
5. Install:
• o-rings 1
• spacer 2
6. Install:
• connecting arms 1
(onto the rear shock absorber)
7. Install:
• connecting arms 1
(onto the relay arm)
T
R
.
.
59 Nm (5.9 m · kg, 43 ft · lb)
4
