![Yamaha XV16ALC (1998) [188/449] Front fork](/img/pdf.png)
Yamaha XV16ALC (1998) [188/449] Front fork
![Yamaha XV16ALC (1998) [188/449] Front fork](/views2/1121376/page188/bgbc.png)
4 - 65
CHAS

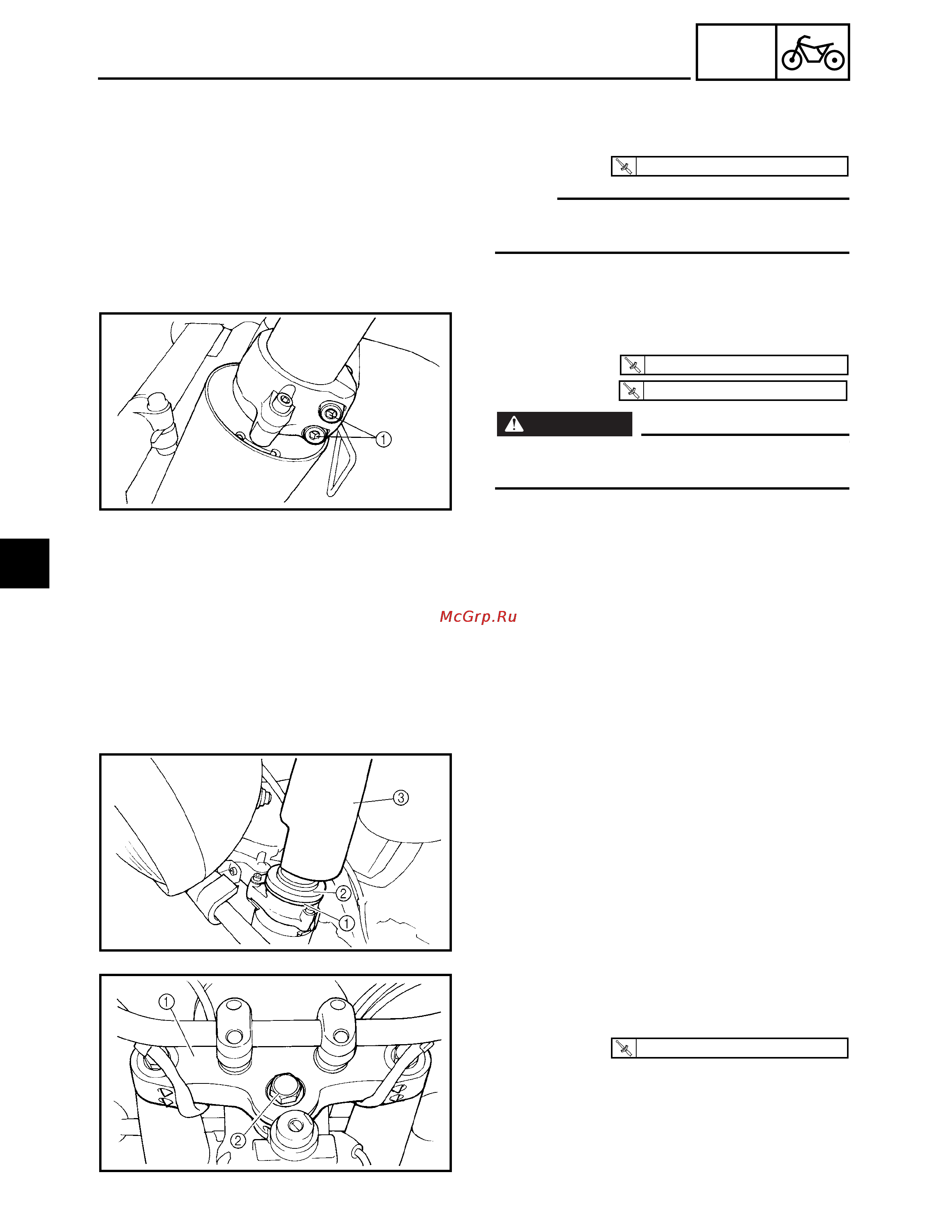

FRONT FORK
3. Install:
• Upper bracket
• Steering stem nut
NOTE:
Make sure the inner fork tube is flush with
the top of the upper bracket.
T
R
.
.
130 Nm (13.0 m · kg, 94 ft · lb)
4. Tighten:
• lower bracket pinch bolt 1
• cap bolt
WARNING
WARNING
Make sure the brake hoses are routed prop-
erly.
5. Remove:
• steering stem nut
• upper bracket
T
R
.
.
20 Nm (2.0 m · kg, 14 ft · lb)
T
R
.
.
23 Nm (2.3 m · kg, 17 ft · lb)
6. Install:
• upper fork washer 1
• upper fork spacer 2
• upper fork cover 3
7. Install:
• upper bracket 1
• steering stem nut 2
T
R
.
.
130 Nm (13.0 m · kg, 94 ft · lb)
4
