CHAS
STEERING HEAD
EAS00676
STEERING HEAD

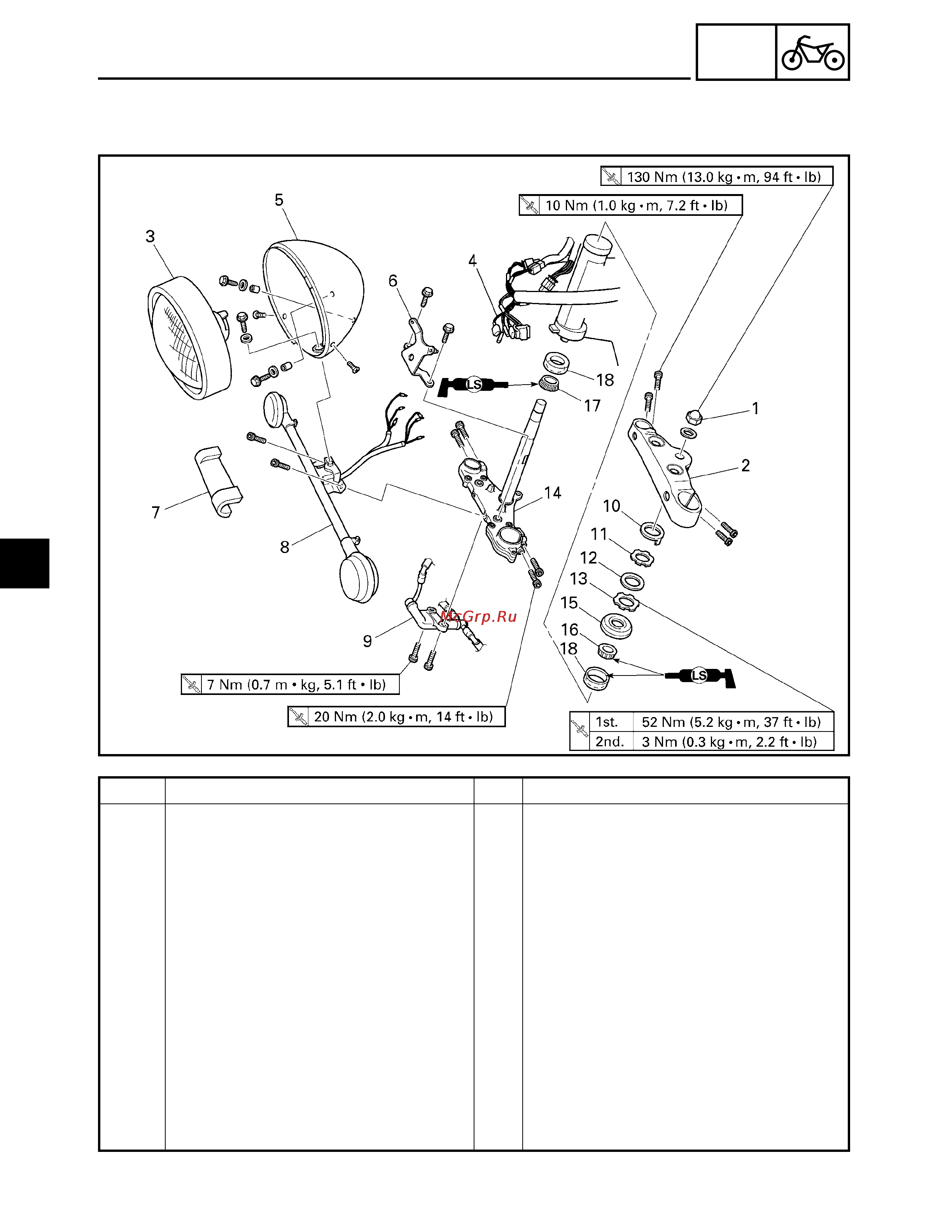

Order Job/Part Q’ty Remarks
Removing the lower bracket Remove the parts in the order listed.
Meter assembly Refer to “FUEL TANK” in chapter 3.
Front fork legs/fork covers Refer to “FRONT FORK”.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISCS”.
Handlebar/handlebar holders Refer to “HANDLEBAR”.
1 Steering stem nut 1
2 Upper bracket 1
3 Headlight lens unit 1
4 Lead (in the headlight body) 1
5 Headlight body 1
6 Headlight bracket 1
7 Chrome turn signal light bracket
cover
1
8 Turn signal light bracket assembly 1
4
