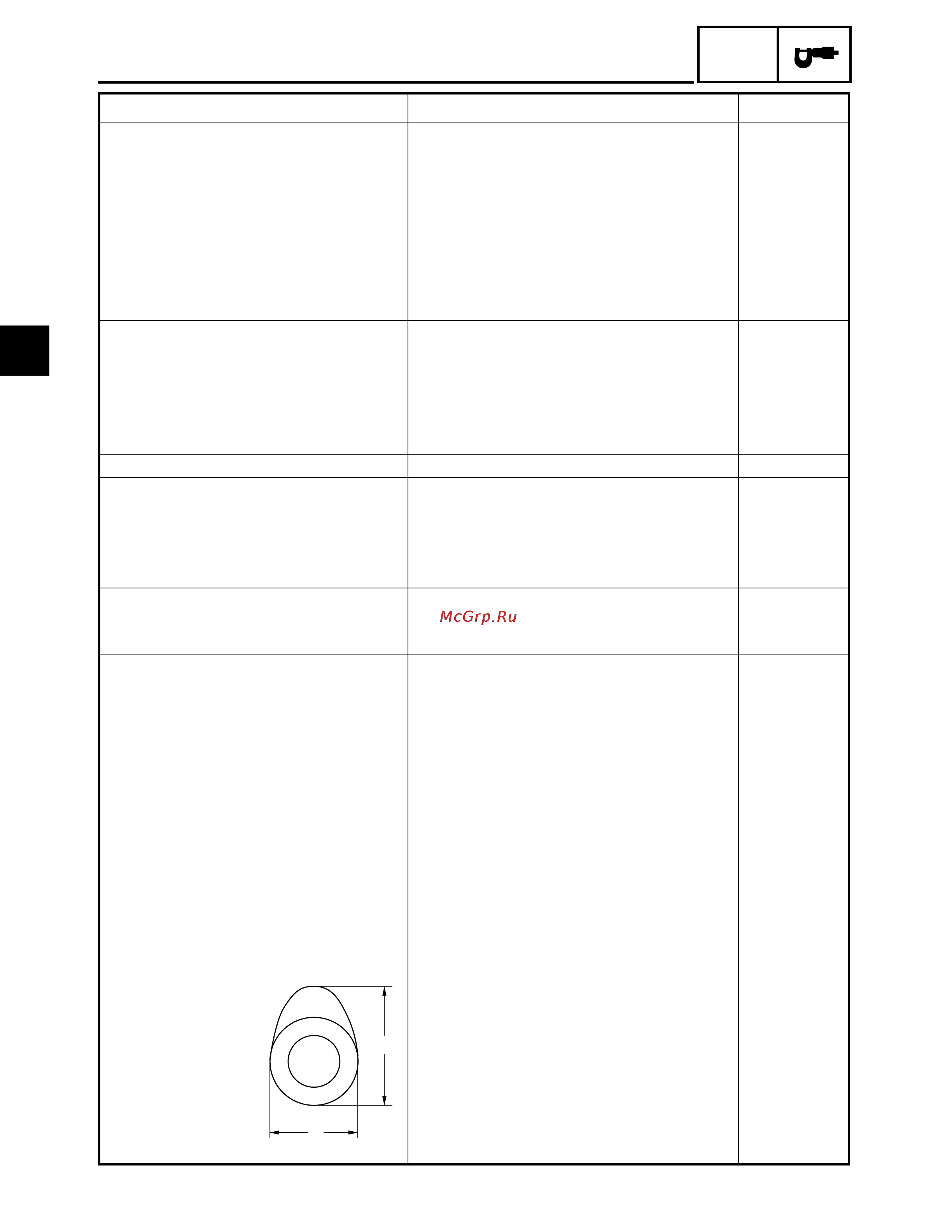

ENGINE SPECIFICATIONS
SPEC
2 - 3
Engine oil pump
Oil pump type Trochoidal ----
Inner rotor to outer rotor tip clear-
ance
0.00 ~ 0.12 mm (0.000 ~ 0.005 in) 0.17 mm
(0.007 in)
Inner rotor outer rotor 2 to oil pump
housing clearance (feed pump)
0.03 ~ 0.08 mm (0.001 ~ 0.003 in) 0.13 mm
(0.005 in)
Inner rotor outer rotor 1 to oil
pump housing clearance
(scavenging pump)
0.06 ~ 0.11 mm (0.002 ~ 0.004 in) 0.16 mm
(0.006 in)
Transfer oil pump
Oil pump type Trochoidal
Inner rotor to outer rotor tip clear-
ance
0.07 ~ 0.12 mm (0.003 ~ 0.005 in) 0.17 mm
(0.007 in)
Inner rotor outer rotor to oil pump
housing clearance
0.03 ~ 0.08 mm (0.001 ~ 0.003 in) 0.16 mm
(0.006 in)
Starting system type Electric starter
Spark plugs
Model
Manufacturer
Quantity
DPR7EA-9/X22EPR-U9
NGK/DENSO
4
----
----
----
Spark plug gap 0.8 ~ 0.9 mm (0.031 ~ 0.035 in) ----
Cylinder heads
Max. warpage ---- 0.10 mm
(0.004 in)
Camshafts
Drive system Gear drive ----
Crankcase hole inside diameter 25.000 ~ 25.021 mm
(0.9843 ~ 0.9851 in)
----
Camshaft cover hole inside diam-
eter
28.000 ~ 28.021 mm
(1.1024 ~ 1.1032 in)
----
Camshaft journal diameter
(crankcase side)
24.937 ~ 24.950 mm
(0.9818 ~ 0.9823 in)
----
Camshaft journal diameter
(camshaft cover side)
27.967 ~ 27.980 mm
(1.1011 ~ 1.1016 in)
----
Camshaft to crankcase clearance 0.050 ~ 0.084 mm (0.0020 ~ 0.0033 in) ----
Camshaft to camshaft cover clear-
ance
0.020 ~ 0.054 mm (0.0008 ~ 0.0021 in) ----
Camshaft intake cam dimensions
Item Standard Limit
A
B
2
