Yamaha XV16ALC (1998) [72/449] Chk adj
![Yamaha XV16ALC (1998) [72/449] Chk adj](/views2/1121376/page72/bg48.png)
3 - 14
CHK
ADJ
ADJUSTING THE THROTTLE CABLE FREE PLAY/
CHECKING THE SPARK PLUGS
e. Turn the adjusting nut 5 in direction a
or b until the specified throttle cable free
play is obtained.
f. Tighten the locknuts.
NOTE:
If the specified throttle cable free play can-
not be obtained on the carburetor side of
the cable, use the adjusting nut on the han-
dlebar side.
g. Install the fuel tank and rider seat. Refer
to “FUEL TANK” and “SEATS AND SIDE
COVERS”.
Direction a
Throttle cable free play is
increased.
Direction b
Throttle cable free play is
decreased.

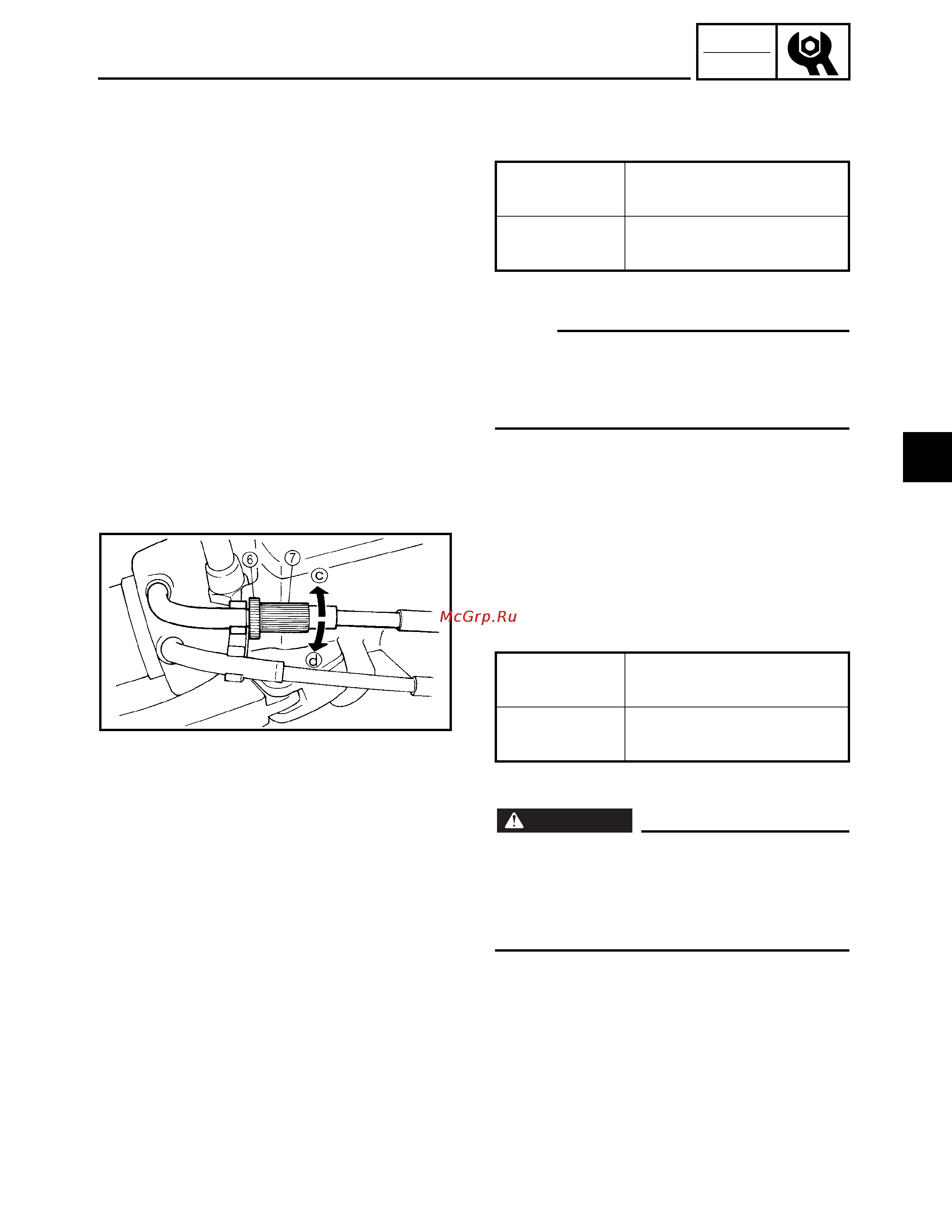

Handlebar side
a. Loosen the locknut 6.
b. Turn the adjusting nut 7 in direction c
or d until the specified throttle cable free
play is obtained.
c. Tighten the locknut.
WARNING
WARNING
After adjusting the throttle cable free play,
start the engine and turn the handlebar to
the right and to the left to ensure that this
does not cause the engine idling speed to
change.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
EAS00059
CHECKING THE SPARK PLUGS
The following procedure applies to all of
the spark plugs.
1. Remove:
• rider seat
• fuel tank
Refer to “SEATS AND SIDE COVERS”
and “FUEL TANK”.
Direction c
Throttle cable free play is
increased.
Direction d
Throttle cable free play is
decreased.
3
