6 - 10
CARB

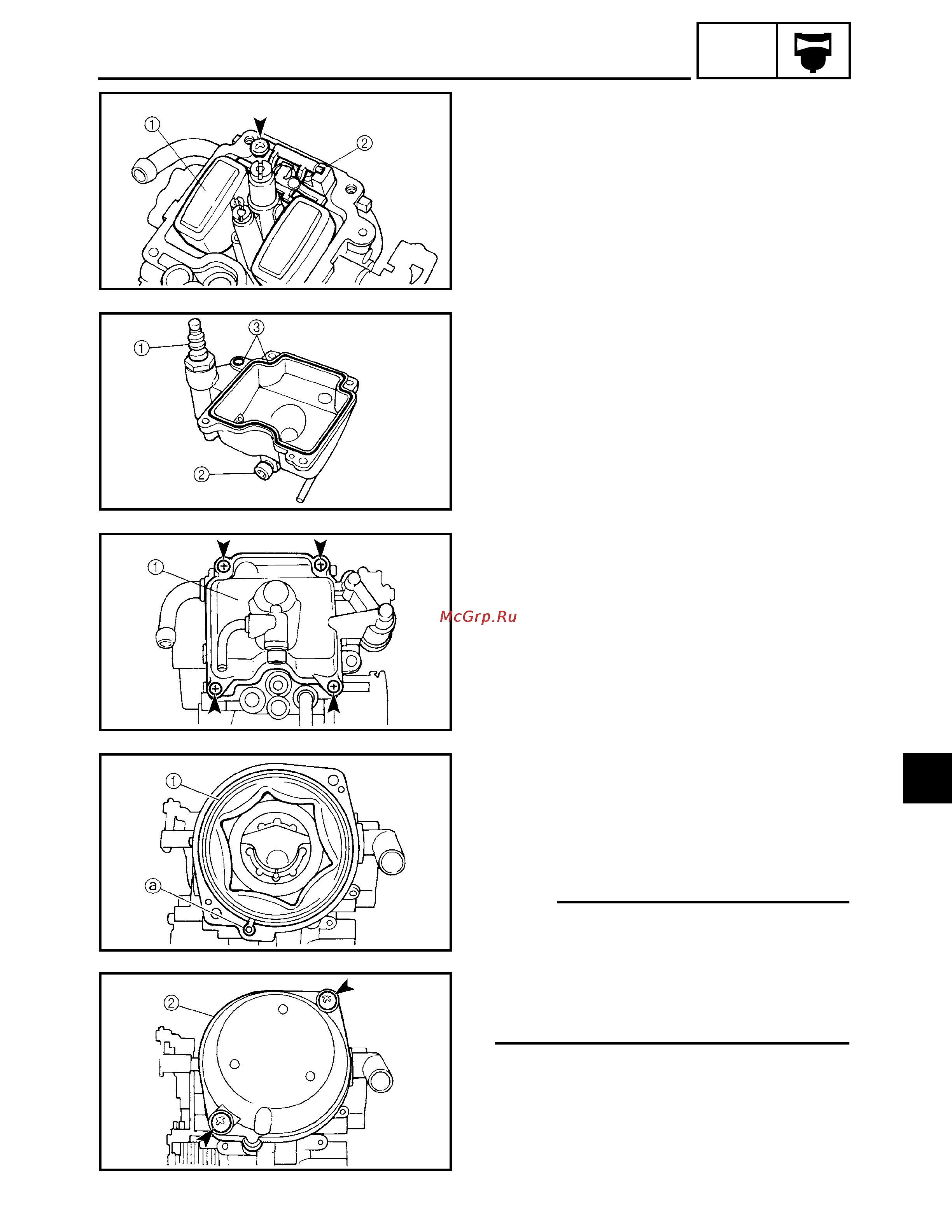

CARBURETOR
6. Install:
• needle valve
• float 1
• float pin 2
7. Install:
• accelerator plunger 1
• drain bolt 2
• float chamber rubber gasket 3
8. Install:
• float chamber 1
9. Install:
• piston valve 1
• jet needle kit
• jet needle holder
• piston valve spring
• vacuum chamber cover 2
NOTE:
• Install the end of the piston valve spring
onto the spring guide on the vacuum
chamber cover.
• Align the tab a on the piston valve dia-
phragm with the recess in the carburetor
body.
6
