![Yamaha XV16ALC (1998) [422/449] Signaling system](/img/pdf.png)

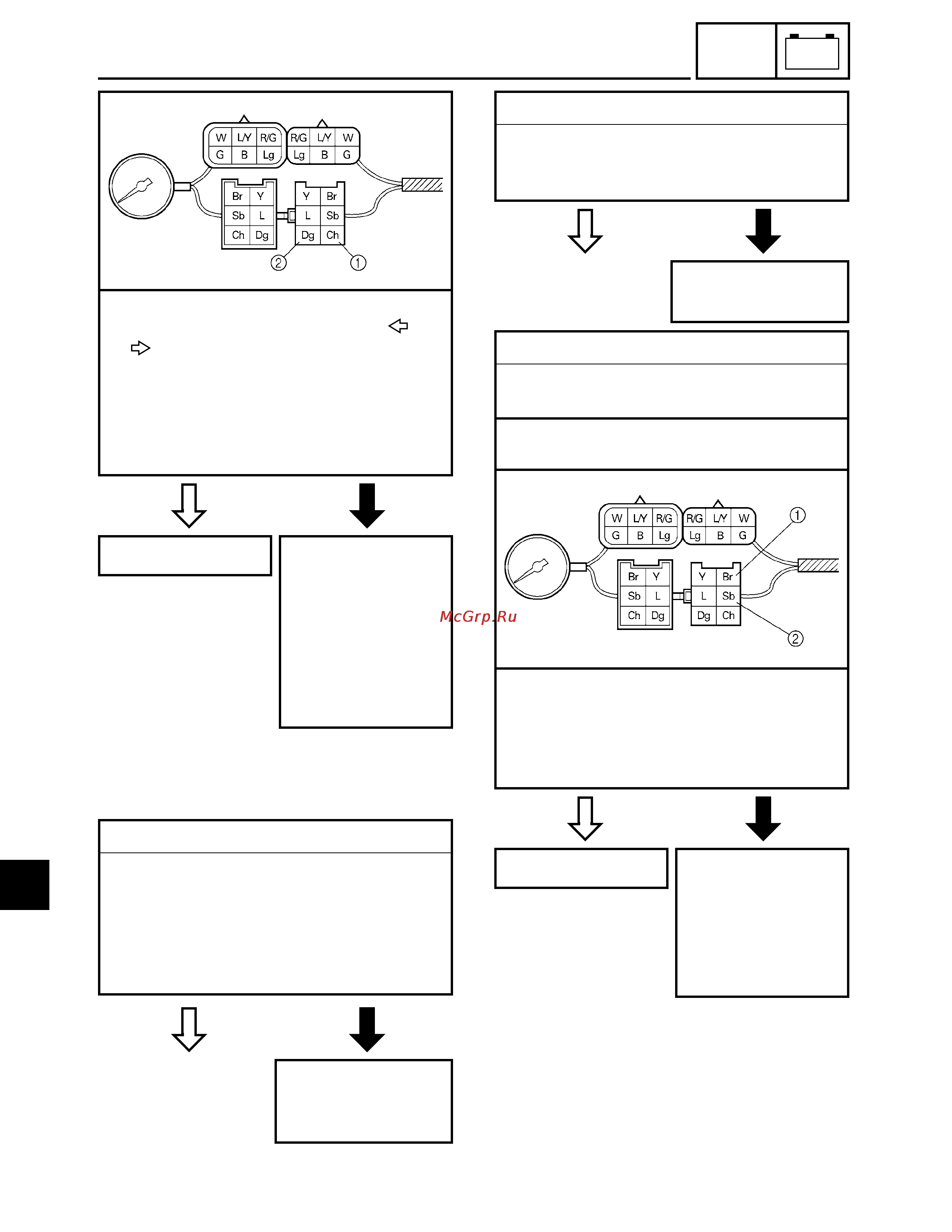

Yamaha XV16ALC (1998) [422/449] Signaling system
![Yamaha XV16ALC (1998) [422/449] Signaling system](/views2/1121376/page422/bg1a6.png)
7 - 43
–+
ELEC
SIGNALING SYSTEM
YES
NO
• Set the main switch to “ON”.
• Set the turn signal switch to “ ” or
“”.
• Measure the voltage (12 V) of chocolate 1
or dark green 2 at the turn signal light con-
nectors (wire harness side) or the meter
assembly coupler.
• Is the voltage within specification?
This circuit is OK. The wiring circuit
from the turn signal
switch to the turn
signal light connec-
tor or the meter
assembly coupler
are faulty and must
be repaired.
EB806414
4. The neutral indicator light fails to come
on.
YES
NO
1.Neutral indicator light bulb and socket
• Check the neutral indicator light bulb
and socket for continuity.
Refer to “CHECKING THE BULBS AND
BULB SOCKETS”.
• Are the neutral indicator light bulb and
socket OK?
Replace the neutral
indicator light bulb,
socket or both.
YES
NO
YES
NO
2.Neutral switch
• Check the neutral switch for continuity.
Refer to “CHECKING THE SWITCHES”.
• Is the neutral switch OK?
Replace the neutral
switch.
3.Voltage
• Connect the pocket tester (DC 20 V) to
the meter assembly coupler as shown.
Tester positive probe → brown 1
Tester negative probe → sky blue 2
• Set the main switch to “ON”.
• Measure the voltage (12 V) of brown 1
and sky blue 2 at the meter assembly
coupler.
• Is the voltage within specification?
This circuit is OK. The wiring circuit
from the main
switch to the meter
assembly coupler is
faulty and must be
repaired.
ı
