4 - 92
CHAS

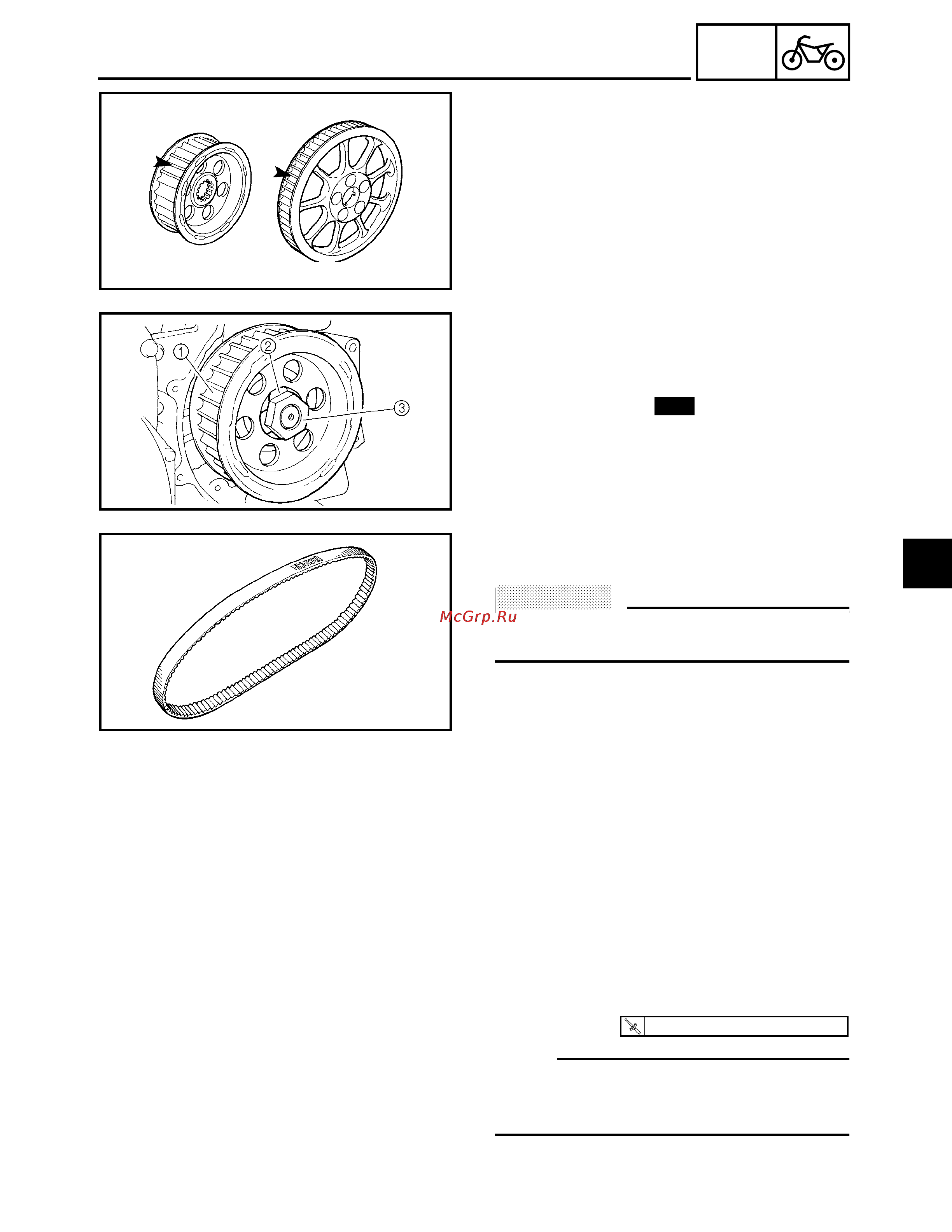

DRIVE BELT AND DRIVE PULLEY
3. Check:
• drive pulley
• rear wheel pulley
Bent teeth → Replace the drive belt and
pulleys as a set.
INSTALLING THE DRIVE BELT AND DRIVE
PULLEY
1. Install:
• drive pulley 1
• lock washer 2
• drive pulley nut 3
New
2. Install:
• drive belt
ACHTUNG:
CAUTION:
Install the drive belt facing the same way it
was removed.
3. Install:
• rear shock absorber and swingarm
assembly
Refer to “REAR SHOCK ABSORBER AND
SWINGARM”.
• rear wheel
Refer to “REAR WHEEL, BRAKE DISC
AND SWINGARM”.
4. Tighten:
• drive pulley nut
NOTE:
When tightening the drive pulley nut, press
down on the brake pedal so the drive pulley
does not move.
5. Bend the lock washer tab along a flat
side of the nut.
T
R
.
.
85 Nm (8.5 m · kg, 61 ft · lb)
