5 - 9
ENG
ENGINE

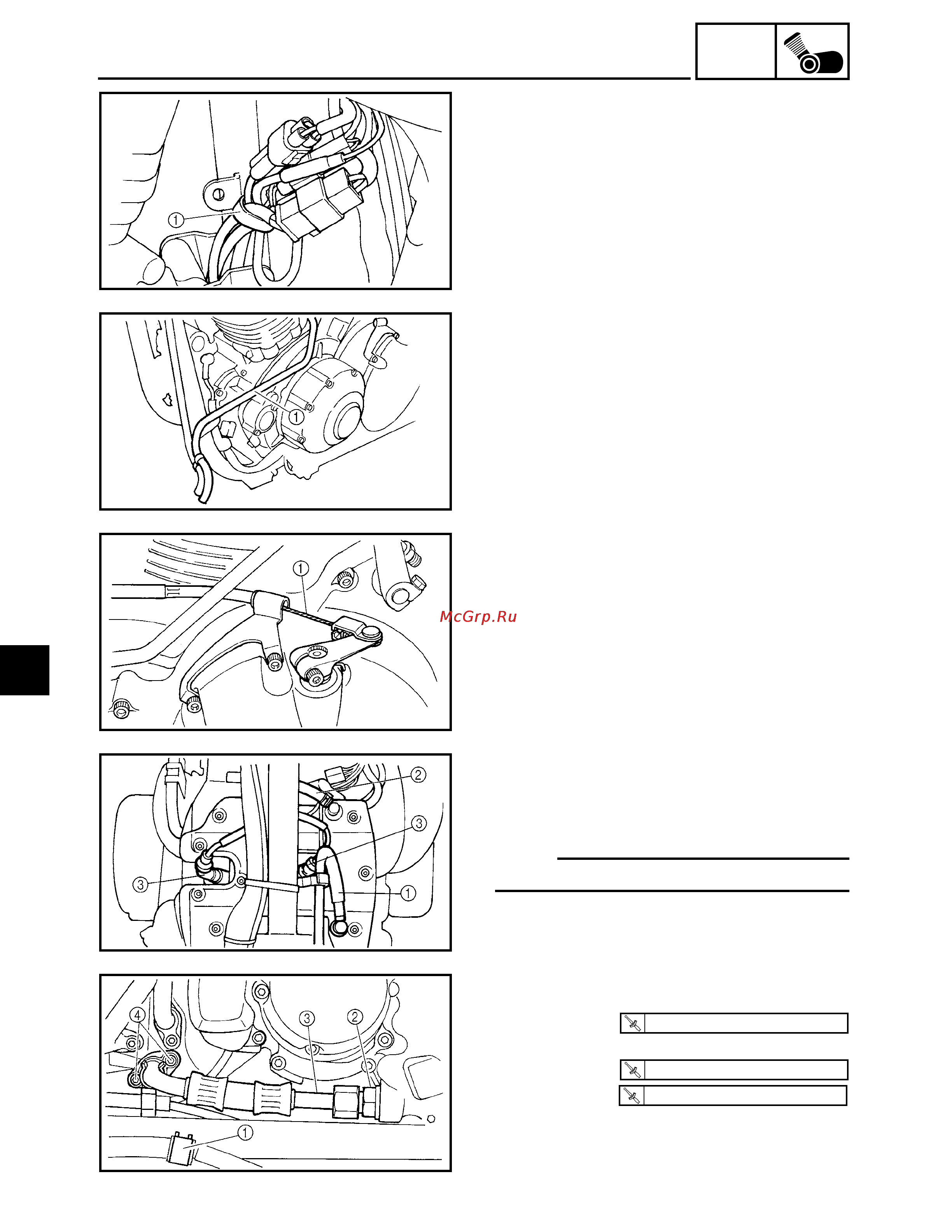

5. Connect:
• speed sensor coupler
• neutral switch connector
• pickup coil coupler
• decompression solenoid coupler
• stator coil coupler
6. Install:
• plastic clamp 1
7. Connect:
• charcoal canister hose (carburetor to
charcoal canister)
1
8. Connect:
• clutch cable
1
9. Connect:
• oil tank breather hose 1
• cylinder head breather hose 2
• spark plug caps 3
NOTE:
Refer to “CABLE ROUTING” in chapter 2.
10.Install:
• brake hose holder 1
• joint bolt 2
• oil delivery pipe 3
• bolts 4
T
R
.
.
40 Nm (4.0 m · kg, 29 ft · lb)
T
R
.
.
40 Nm (4.0 m · kg, 29 ft · lb)
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
