5 - 43
ENG
CYLINDER HEADS

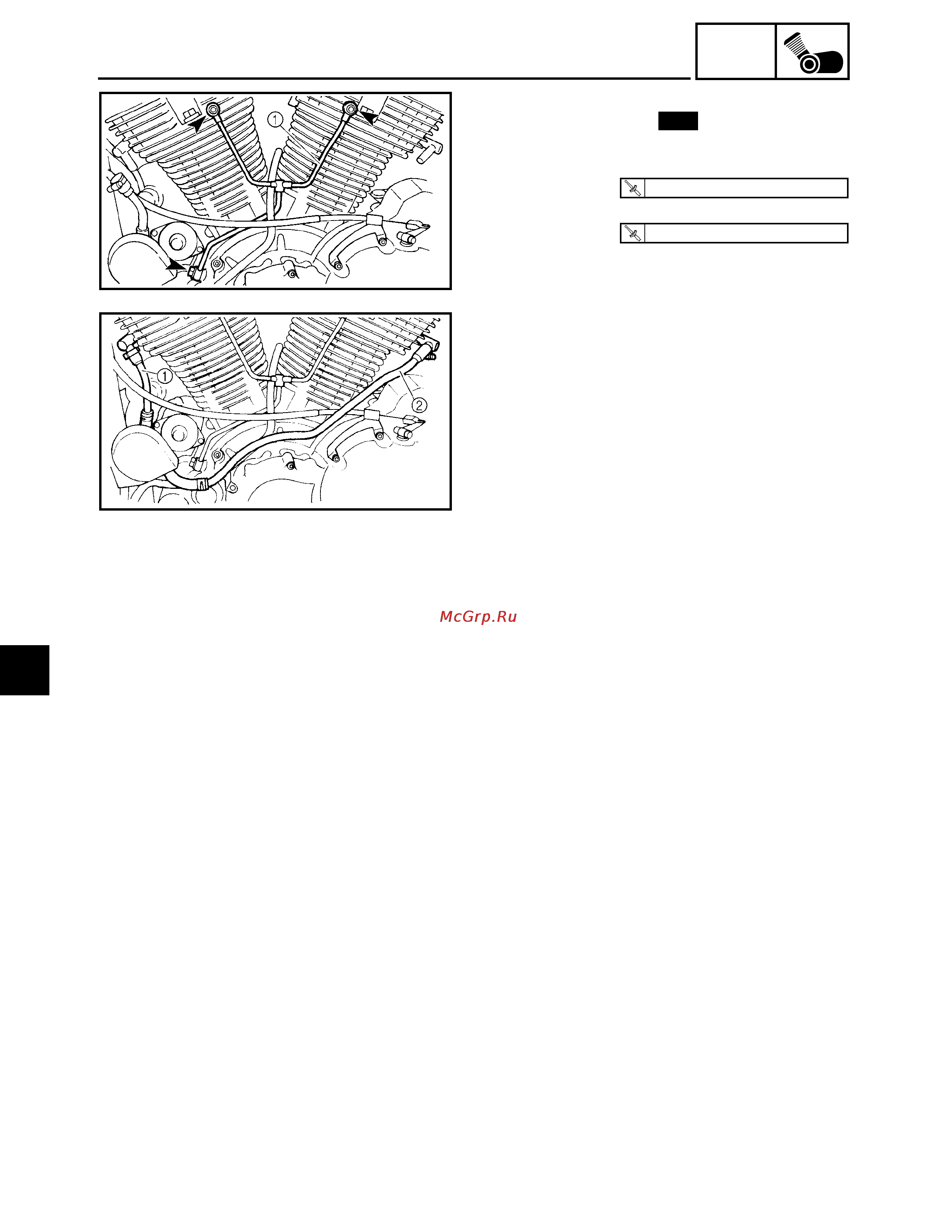

3. Install:
• copper washers
• oil delivery pipe 1
• oil delivery pipe bolts (M10)
• oil delivery pipe bolt (M8)
New
T
R
.
.
21 Nm (2.1 m · kg, 15 ft · lb)
T
R
.
.
18 Nm (1.8 m · kg, 13 ft · lb)
4. Install:
• gaskets
• reed valve case to front cylinder pipe 1
• reed valve case to rear cylinder pipe 2
5. Install:
• rocker arms
• cylinder head covers
Refer to “ROCKER ARMS, PUSH RODS
AND VALVE LIFTERS”.
• muffler
• exhaust pipes
Refer to “ENGINE”.
• carburetor
Refer to “CARBURETOR” in chapter 6.
• air filter case
• fuel tank
• rider seat
Refer to “AIR FILTER CASE”, “FUEL
TANK” and “SEATS AND SIDE COVERS”
in chapter 3.
