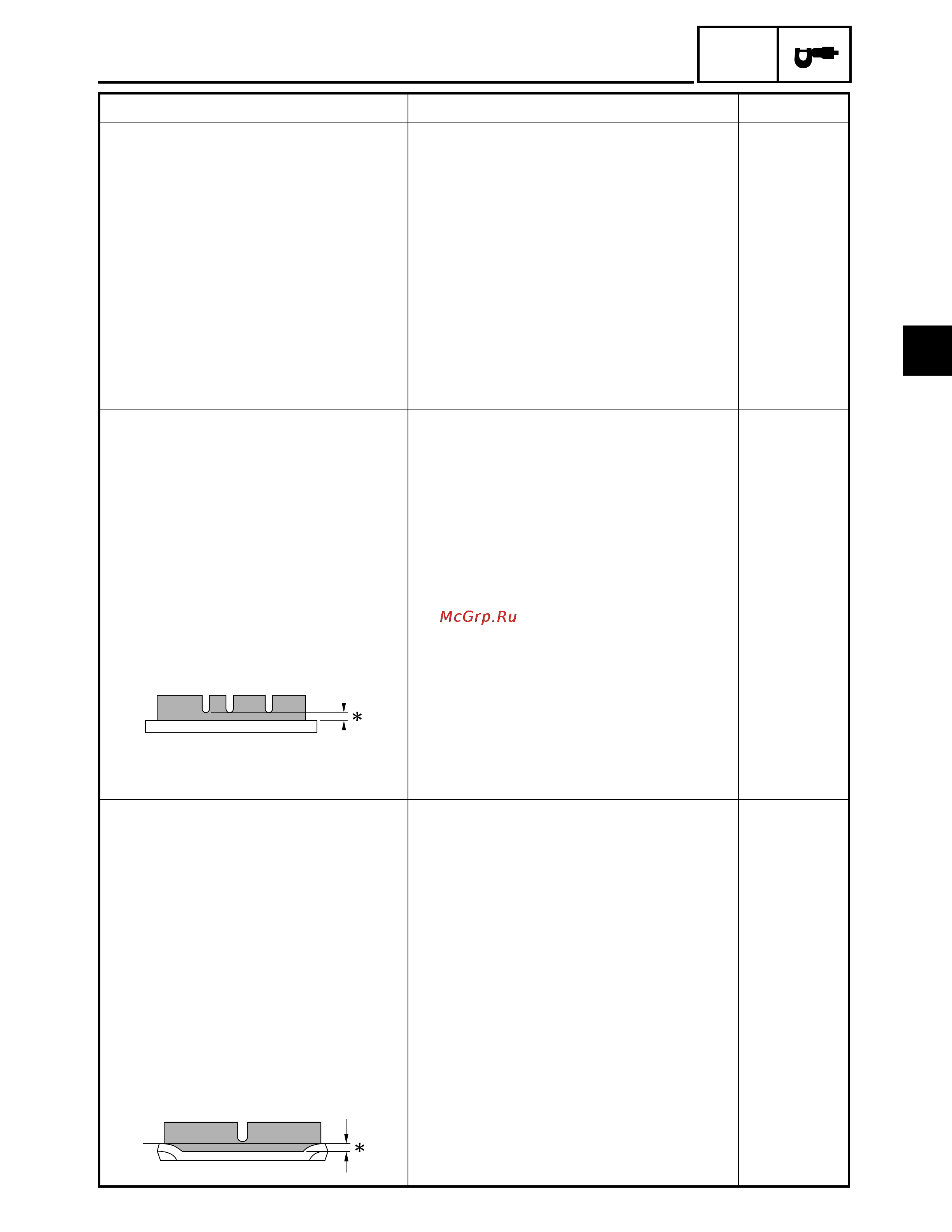

CHASSIS SPECIFICATIONS
SPEC
2 - 12
Rear tire
Tire type With tube ----
Size 150/80 B16 71H ----
Model (manufacturer) D404 (DUNLOP)/
G702 (BRIDGESTONE)
----
Tire pressure (cold)
0 ~ 90 kg (0 ~ 198 lb) 250 kPa (2.5 kg/cm
2
, 36 psi) ----
90 kg (198 lb) ~ Maximum load* 280 kPa (2.8 kg/cm
2
, 40 psi) ----
High-speed riding 280 kPa (2.8 kg/cm
2
, 40 psi) ----
* Load is the total weight of the cargo,
rider, passenger and accessories.
Min. tire tread depth ---- 1.6 mm
(0.06 in)
Front brakes
Brake type Dual-disc brake ----
Operation Right-hand operation ----
Brake lever free play (lever end) 2 ~ 5 mm (0.08 ~ 0.20 in) ----
Recommended fluid DOT 4 ----
Brake discs
Diameter × thickness 298 × 5 mm (11.7 × 0.20 in) ----
Min. thickness ---- 4.5 mm
(0.18 in)
Max. deflection ---- 0.1 mm
(0.004 in)
Brake pad lining thickness 6.0 mm (0.24 in) 0.5 mm
(0.02 in)
Master cylinder inside diameter 15.8 mm (0.62 in) ----
Caliper cylinder inside diameter 30.1 mm (1.19 in) and 33.3 mm (1.31 in) ----
Rear brake
Brake type Single-disc brake ----
Operation Right-foot operation ----
Brake pedal position (from the top
of the brake pedal to the bottom of
the rider footrest board)
100 mm (3.9 in) ----
Recommended fluid DOT 4 ----
Brake discs
Diameter × thickness 320 × 7 mm (12.6 × 0.28 in) ----
Min. thickness ---- 6.5 mm
(0.26 in)
Max. deflection ---- 0.1 mm
(0.004 in)
Brake pad lining thickness 7.5 mm (0.30 in) 0.5 mm
(0.02 in)
Item Standard Limit
