Yamaha XV16ALC (1998) [352/449] Carburetor
![Yamaha XV16ALC (1998) [352/449] Carburetor](/views2/1121376/page352/bg160.png)
6 - 3
CARB

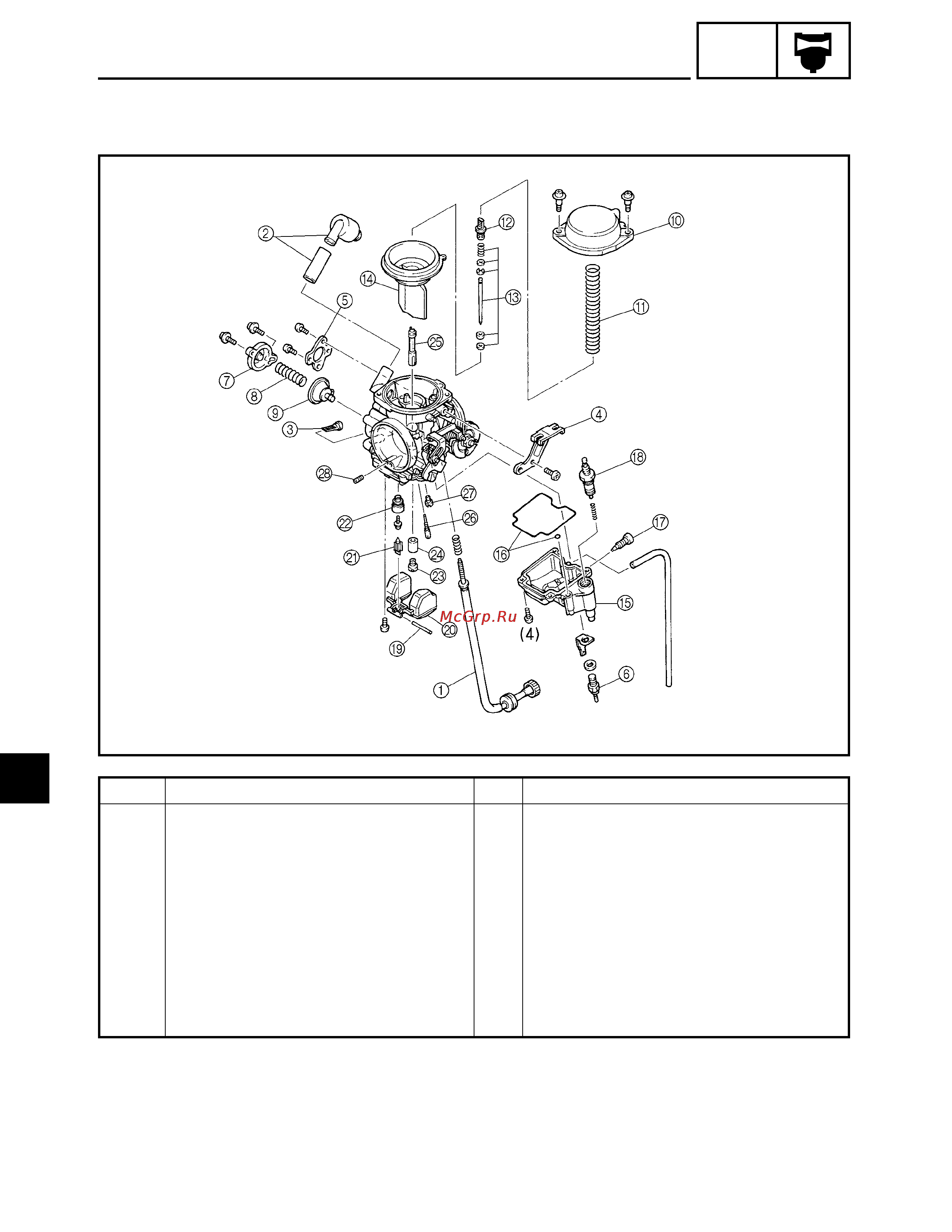

CARBURETOR
EAS00483
Order Job/Part Q’ty Remarks
Disassembling the carburetor Remove the parts in the order listed.
1 Throttle stop screw 1
2 Vacuum chamber air vent hose 1
3 Fuel strainer 1
4 Throttle cable holder 1
5 Throttle position sensor bracket 1
6 Carburetor heater 1
7 Coasting enricher cover 1
8 Coasting enricher spring 1
9 Coasting enricher 1
6
