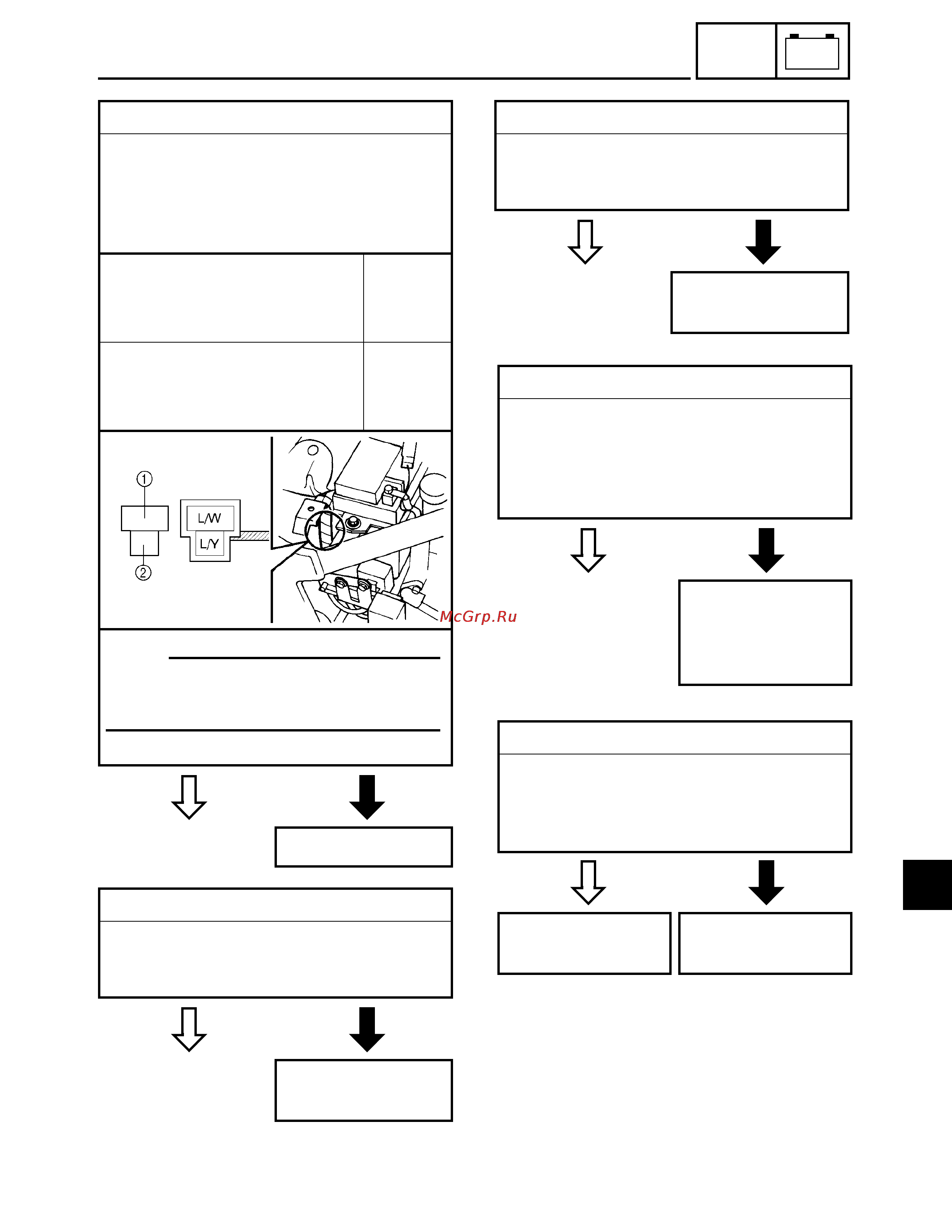

Yamaha XV16ALC (1998) [402/449] Electric starting system
![Yamaha XV16ATL (1998) [402/449] Electric starting system](/views2/1121376/page402/bg192.png)
7 - 22
–+
ELEC
ELECTRIC STARTING SYSTEM
YES
NO
11.Diode
• Remove the diode from the coupler.
• Connect the pocket tester (Ω× 1) to the
diode terminals as shown.
• Check the diode for continuity as fol-
lows.
Tester positive probe →
blue/white 1
Tester negative probe →
blue/yellow 2
Continu-
ity
Tester positive probe →
blue/yellow 2
Tester negative probe →
blue/white 1
No conti-
nuity
• Are the tester readings correct?
Replace the diode.
NOTE:
When you switch the tester’s positive
and negative probes, the readings in the
above chart will be reversed.
EB803405
YES
NO
12.Clutch switch
• Check the clutch switch for continuity.
Refer to “CHECKING THE SWITCHES”.
• Is the clutch switch OK?
Replace the clutch
switch.
EB803406
YES
NO
13.Start switch
• Check the start switch for continuity.
Refer to “CHECKING THE SWITCHES”.
• Is the start switch OK?
Replace the right
handlebar switch.
FAS00754
YES
NO
14.Wiring
• Check the entire starting system’s wir-
ing.
Refer to “CIRCUIT DIAGRAM”.
• Is the starting system’s wiring properly
connected and without defects?
Properly connect
or repair the start-
ing system’s wir-
ing.
YES
NO
15.Decompression solenoid (thermistor)
• Check the decompression solenoid for
continuity.
Refer to “SELF-DIAGNOSIS”.
• Is the decompression solenoid OK?
Replace the ignitor
unit.
Replace the decom-
pression solenoid.
7
