Yamaha XV16ALC (1998) [324/449] Crankcase

5 - 104

ENG

CRANKCASE

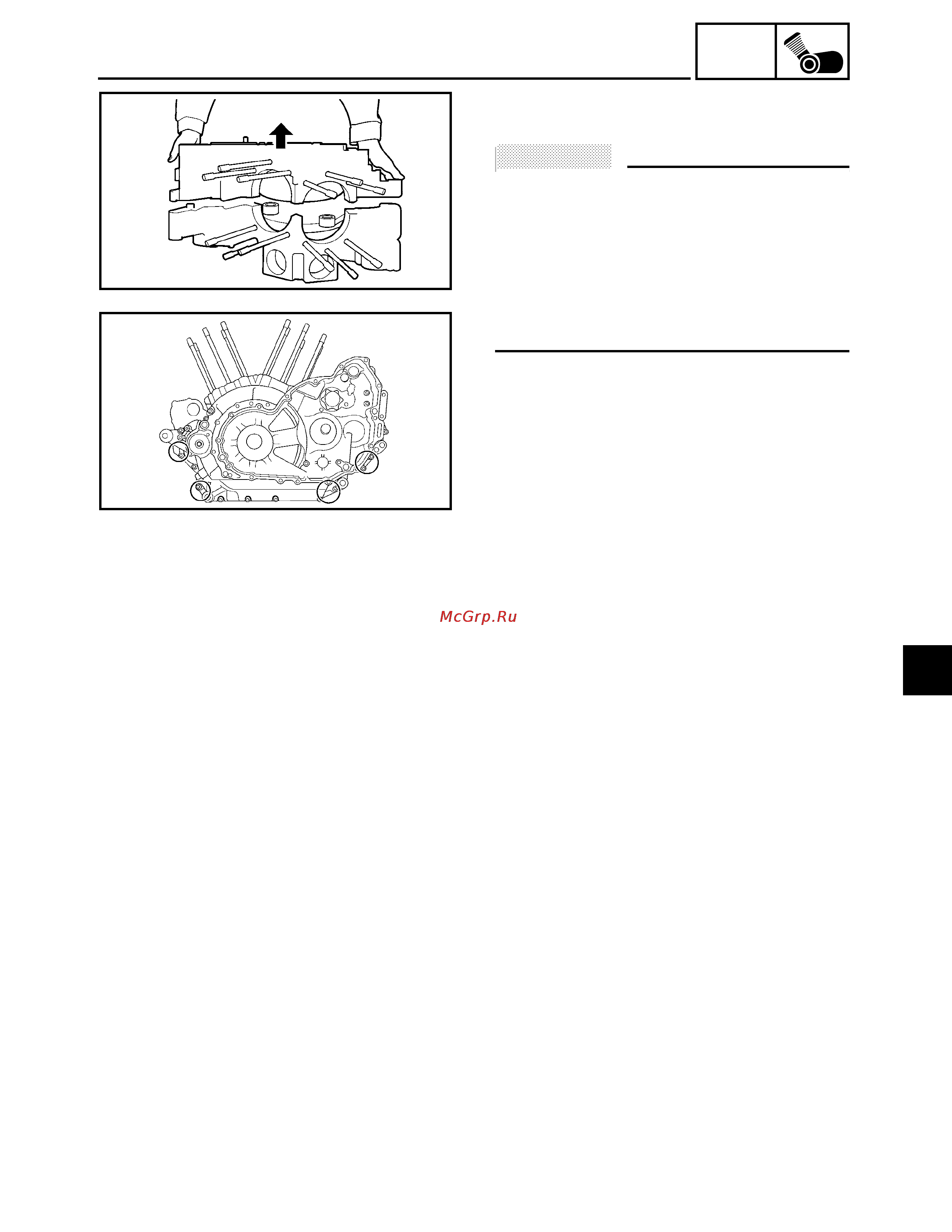

4. Remove:

• right crankcase

ACHTUNG:

CAUTION:

• First check that the shift drum segment’s

teeth then remove the right crankcase.

• Tap on one side of the crankcase with a

soft-face hammer. Tap only on reinforced

portions of the crankcase, not on the

crankcase mating surfaces. Work slowly

and carefully and make sure the crank-

case halves separate evenly.

EAS00399

CHECKING THE CRANKCASE

1. Thoroughly wash the crankcase halves in

a mild solvent.

2. Thoroughly clean all the gasket surfaces

and crankcase mating surfaces.

3. Check:

• crankcase

Cracks/damage → Replace.

• oil delivery passages

Obstruction → Blow out with com-

pressed air.

EAS00401

CHECKING THE BEARINGS AND OIL SEAL

1. Check:

• bearings

Clean and lubricate the bearings, then

rotate the inner race with your finger.

Rough movement → Replace.

2. Check:

• oil seal

Damage/wear → Replace.
