Kramer Sierra Ponderosa 6464HDR-64 [100/128] Rear panel connections

SIERRA VIDEO

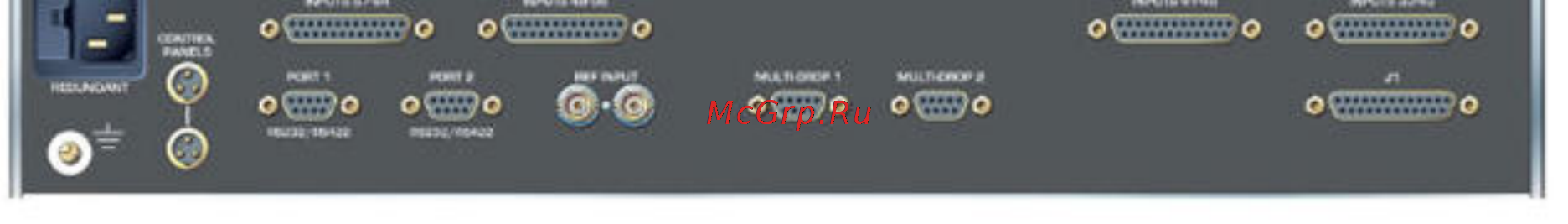

Rear Panel Connections

The Ponderosa Audio frame(s) are used in other Sierra Video audio applications and models.

Therefore there are several unused connectors on the rear of the unit.

Unused connectors;

 Control Panels.

 9 pin Serial Ports (port 1 and port 2).

 REF Input.

Only the J1 and multi-drop connectors are used in the Ponderosa Audio models.

The multi-drop connectors do not exist on the digital audio (E) models.

A system drawing will be sent with your order indicating the proper connections.
