Kramer Sierra Ponderosa 6464HDR-64 [50/128] Button configuration

SIERRA VIDEO

If this is the correct image, press “Apply”.

From this page the panel my now be programmed.

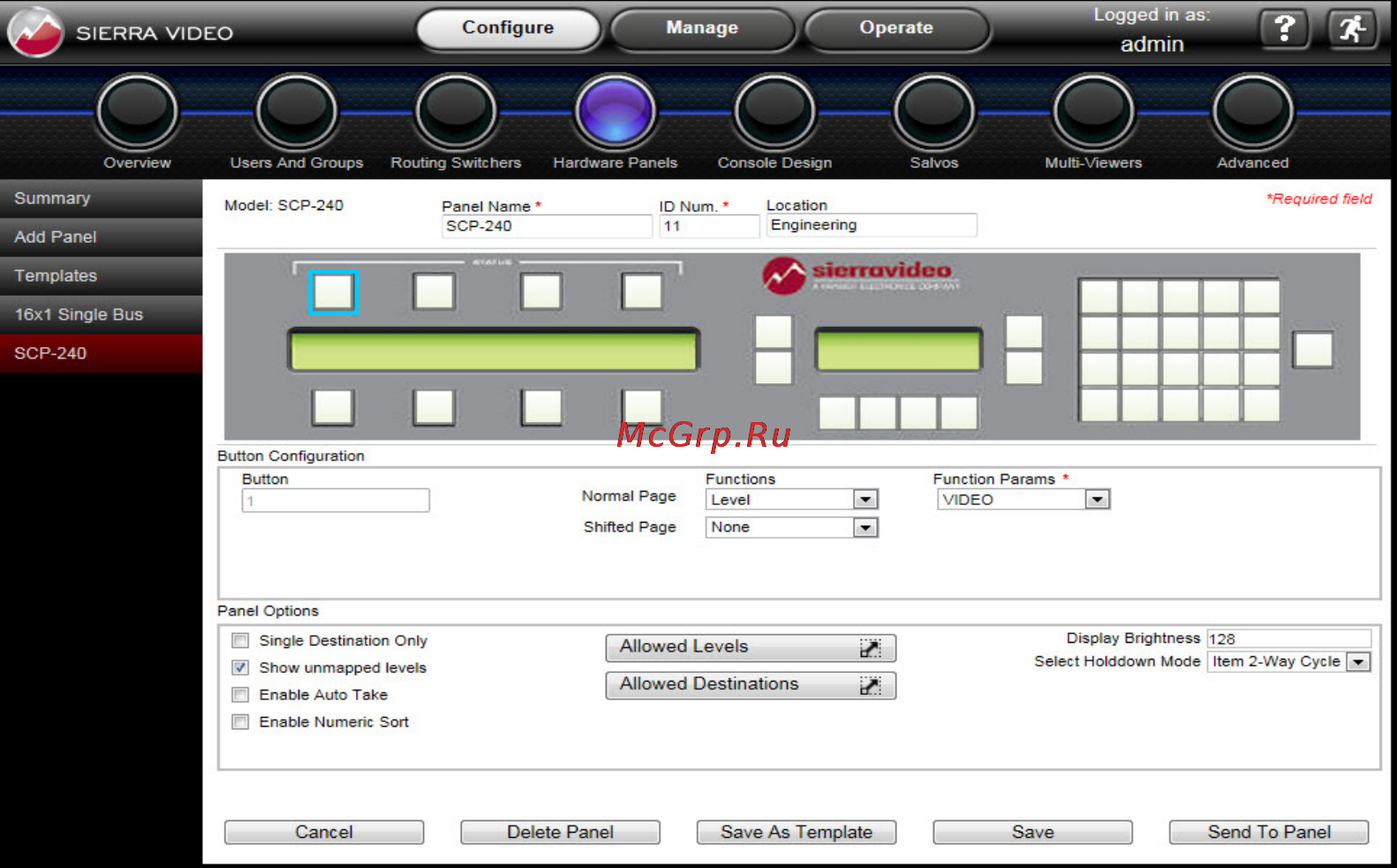

Button Configuration

 Click on the button to be programmed.

 Select whether the “function” will be on the normal or shift page.

 Select the function for the button.

Many functions require that a function parameter be selected i.e. when the function

“Level” is selected, a specified level must be selected from the “Function Params”

dropdown list.
