Kramer Sierra Ponderosa 6464HDR-64 [111/128] Crosspoint output driver modules

PONDEROSA

105

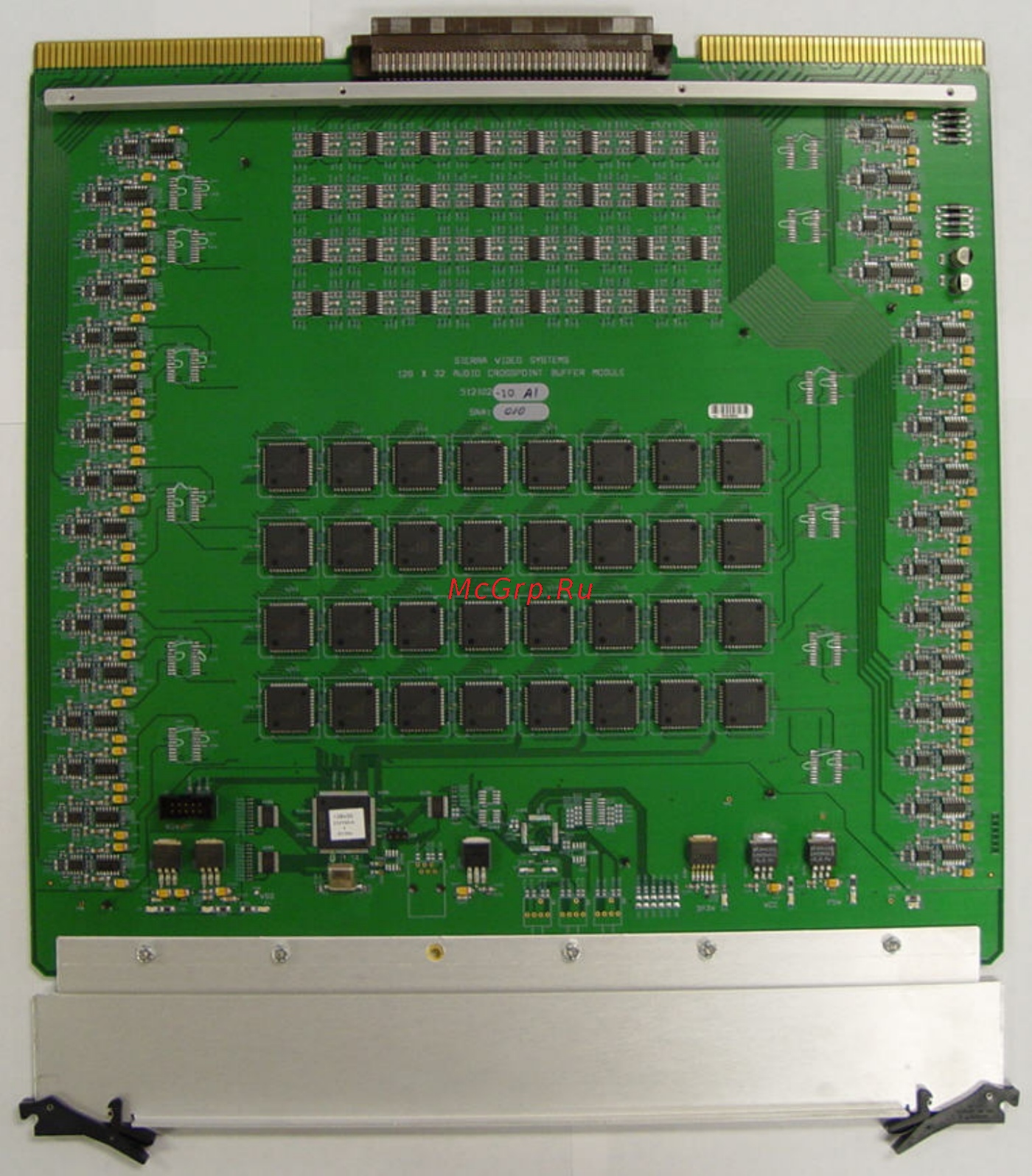

Crosspoint/ Output Driver Modules

The analog audio crosspoint module used in Ponderosa Audio is a 128x32 module. The

switching integrated circuit (IC) is a HCMOS 16x8 array. Thirty-two of these switching

IC’s are arranged to form a 128x32 matrix.

Each output bus from the switching matrix feeds a differential output. The output driver

provides a symmetrical low impedance output signal.

The 64x64 frame has positions for two 128x32 / 32-channel output driver modules; the

128x128 frame has positions for four 128x32 / 32-channel output driver modules.

Grounding the negative side of the output drive adds +6dB of audio gain.
