Kramer Sierra Ponderosa 6464HDR-64 [67/128] Output settings

PONDEROSA

Select from the drop down list the equalizer settings desired.

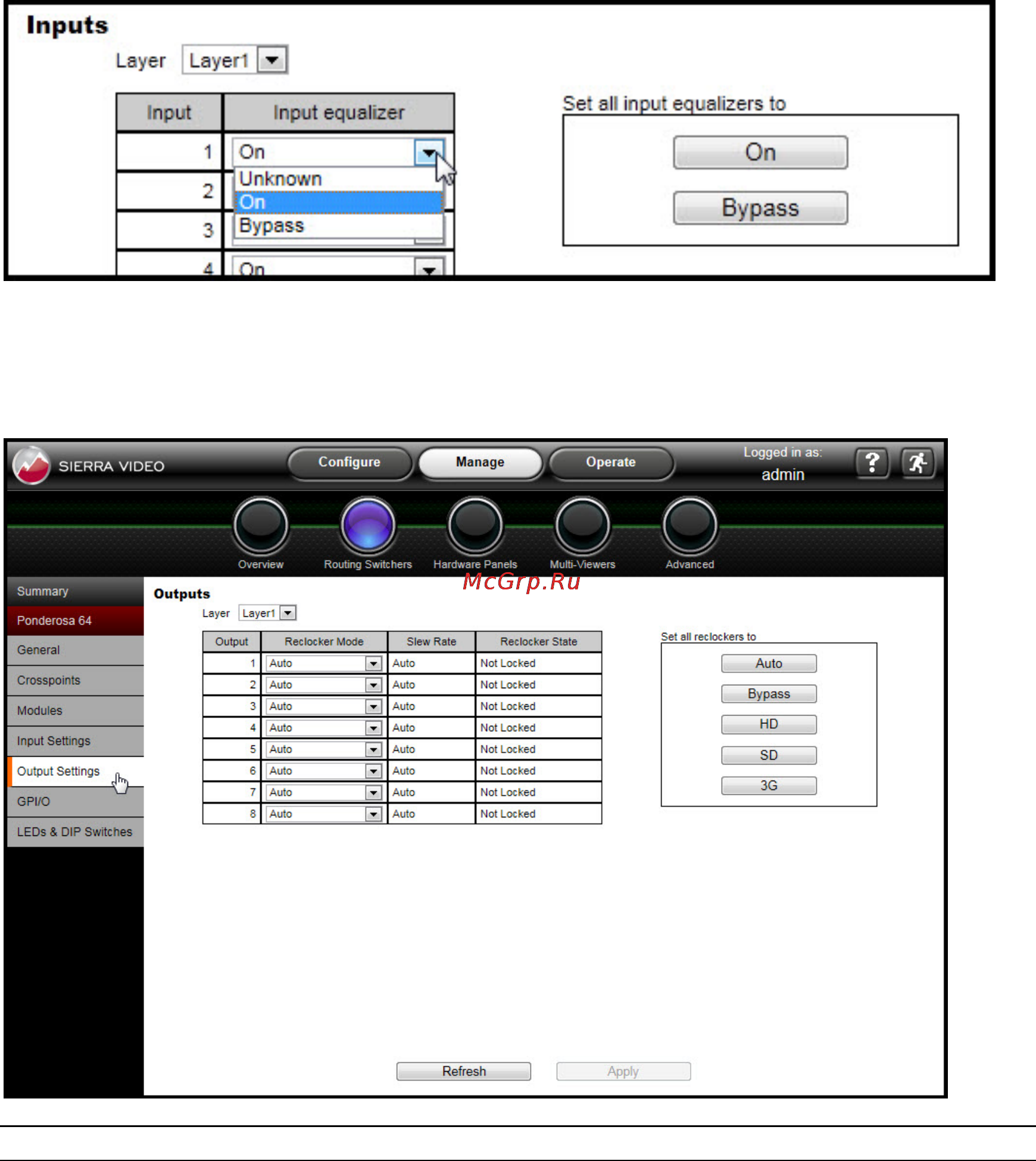

Output Settings

The output settings tab allows you to set the output reclocker modes.

Note:

Slew rate: If the reclocker is set to “bypass”, the user can set the Slew Rate to “SD” or “HD”.

Otherwise, the slew rate will always be “auto”.

The reclocker state is read only. The states are “unknown”, “bypass”, “locked-SD”, “locked-HD”,

“locked-3G” and “not locked”. Note that when the reclocker is set to “SD” or “HD”, the Ponderosa

will always return a reclocker state of “unknown”.
