SIERRA VIDEO
64
Advanced
The Advanced subsection of the Manage system feature contains management features
that are more specific to the control system and software updates. The menu tabs on the
left side of the page are Network, Logging, Software Update, and System Control.
Network
The Network tab includes parameters and status of the network and includes network
host information: Name, Mode, IP Address, Subnet mask, Gateway, Speed, and
Status.
Logging
This tab includes just two buttons, one to download the logs, and another to delete the
logs. Clicking Download Logs immediately downloads a ZIP folder of text files
containing logged data.
Warning!
Clicking Delete Logs immediately deletes all logs.

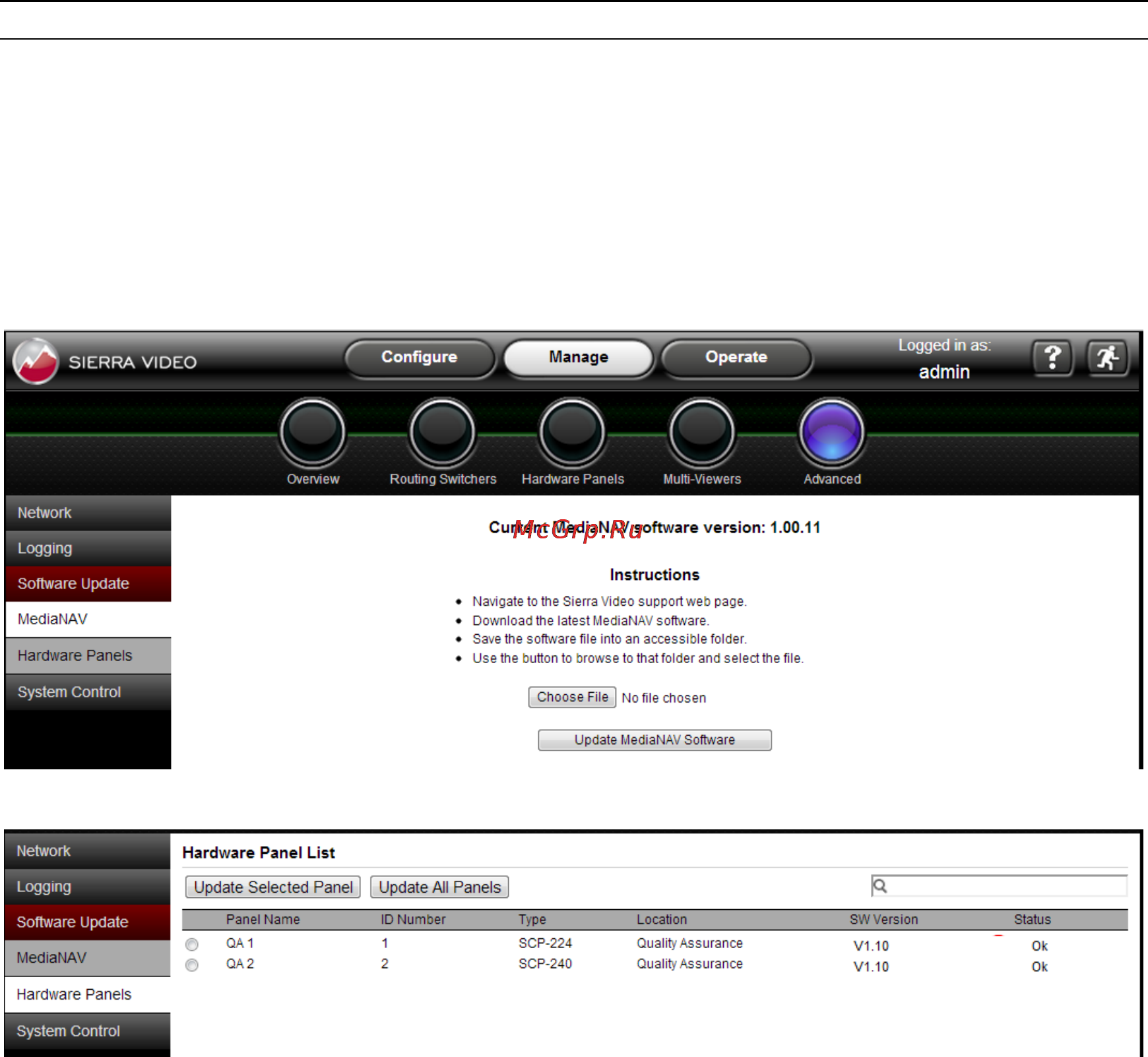

Software Update
This tab reveals tabs for sub-menus, MediaNAV and Hardware Panels, which reveal
menus that can be used to update the software for the MediaNAV controller and for the
Sierra Video programmable SCP hardware control panels.
