Kramer Sierra Ponderosa 6464HDR-64 [44/128] Layers

SIERRA VIDEO

Layers

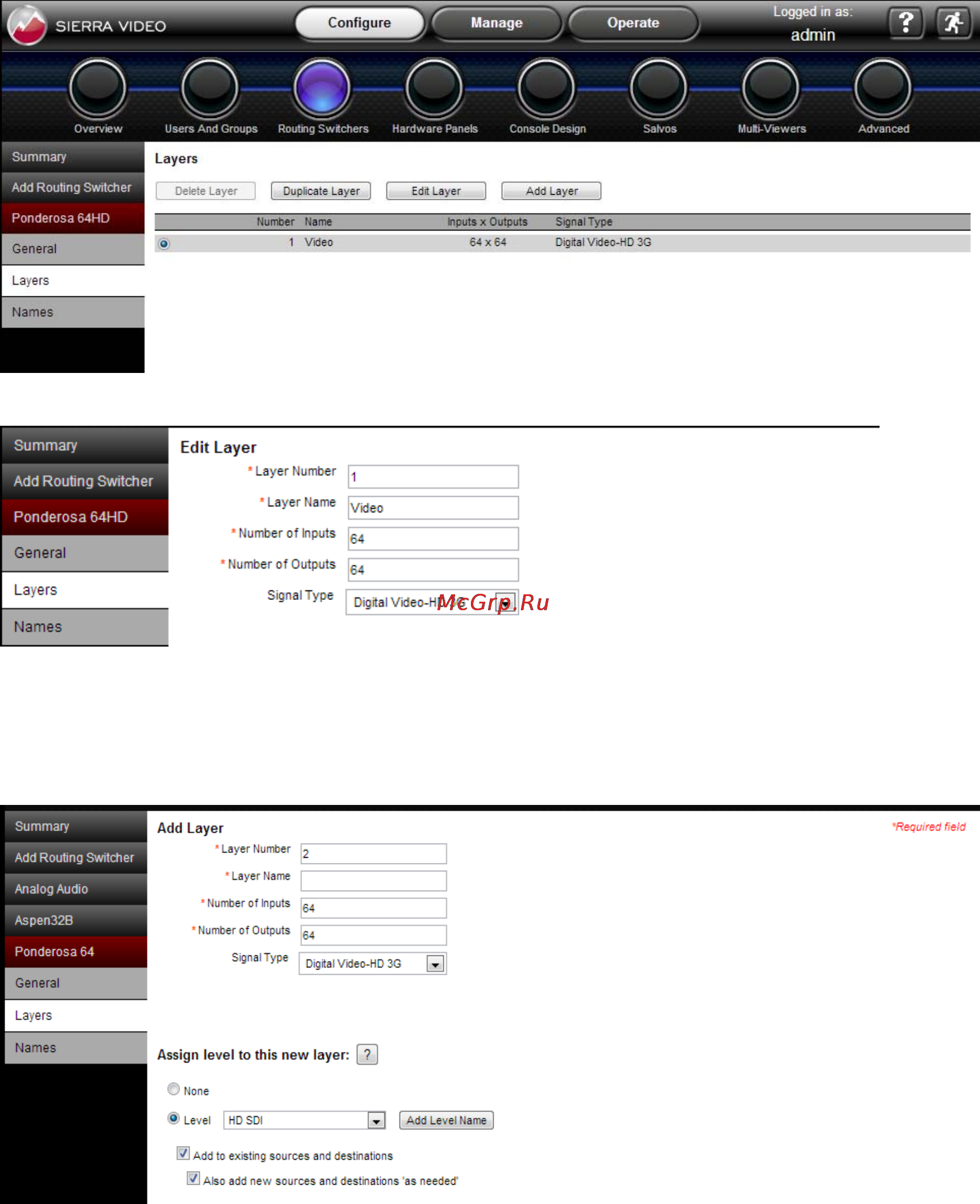

This tab reveals a page that lists various configuration parameters for the selected

routing switcher. Clicking on Edit Layer opens a menu with Layer parameters in editable

fields.

Click on Edit Layer –

This page allows modification of layer parameters, including Number, Name, Inputs,

Outputs, and Signal Type.

Or, click on Add Layer –

This page allows a new layer to be added to the selected routing switcher. A new level

can be added as well.
