SIERRA VIDEO

User Interface

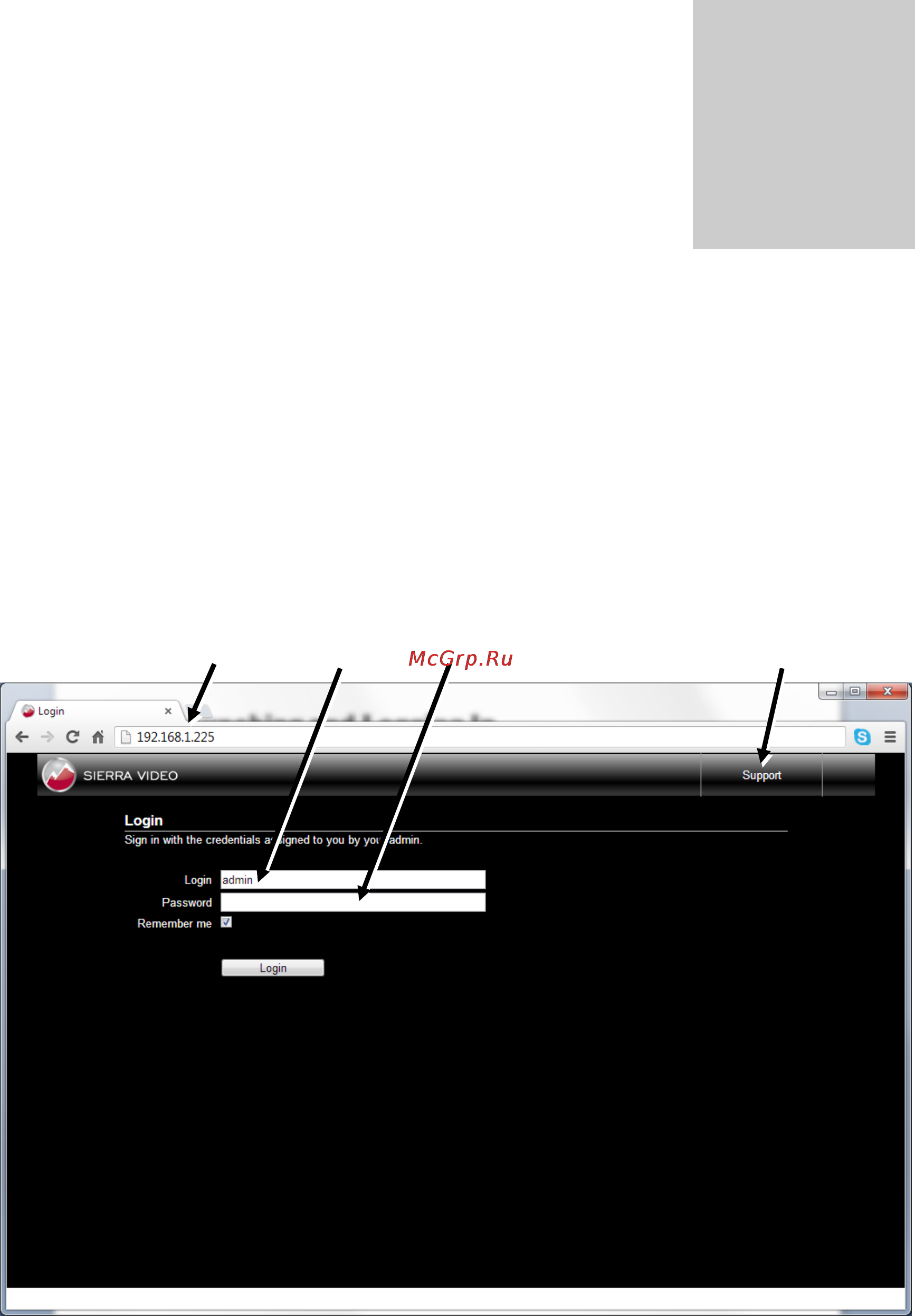

Launching and Logging In

The Ponderosa CPU is equipped with MediaNAV configuration and control software. The

application is accessed on one of the supported web server platforms using any web

browser over a LAN or WiFi connection. In the URL web address field on the browser,

enter the IP address of the Routing Switcher, then log in (the default IP address is

192.168.1.200 and admin default password is “password”) as follows:

IP Address “admin” “password” Support

Clicking the Support button presents contact information for Sierra Video including web

address, phone numbers, email address, and shipping address.
