Kramer Sierra Ponderosa 6464HDR-64 [87/128] Fiber input module optional

PONDEROSA

Fiber Output Module (Optional)

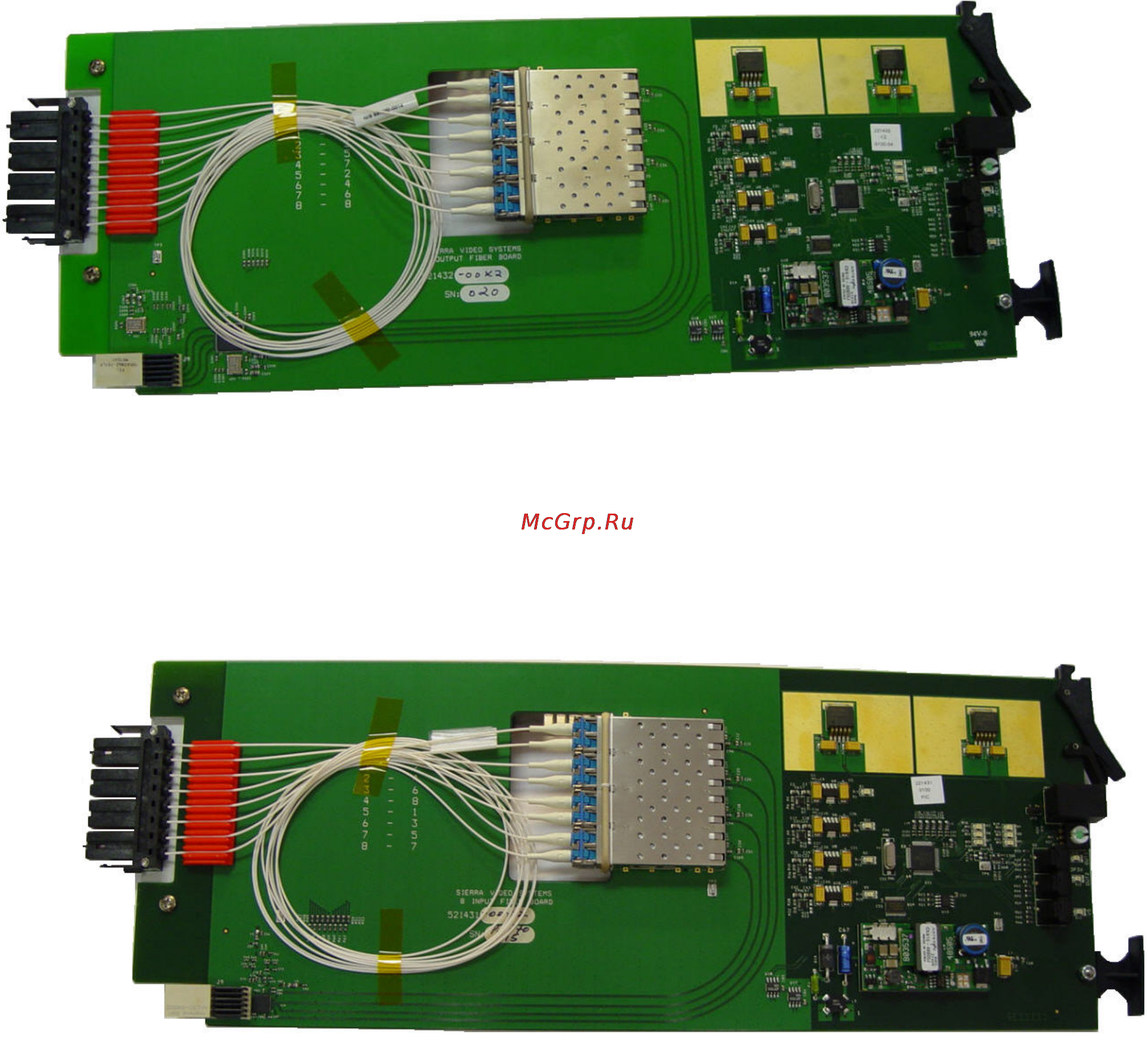

The optional Fiber Output module is an 8 output board that replaces a “standard” 8 output HD/SD

board.

Each module handles 8 outputs on LC style connectors using single-mode cable.

This module provides bandwidth from 50Mbps to 3Gbps.

Fiber Input Module (Optional)

The optional Fiber Input module is an 8 input board that replaces a “standard” 8 input HD/SD

board.

Each module handles 8 inputs on LC style connectors using single-mode cable.

This module provides bandwidth from 50Mbps to 3Gbps.
