SIERRA VIDEO

Power Supply Module

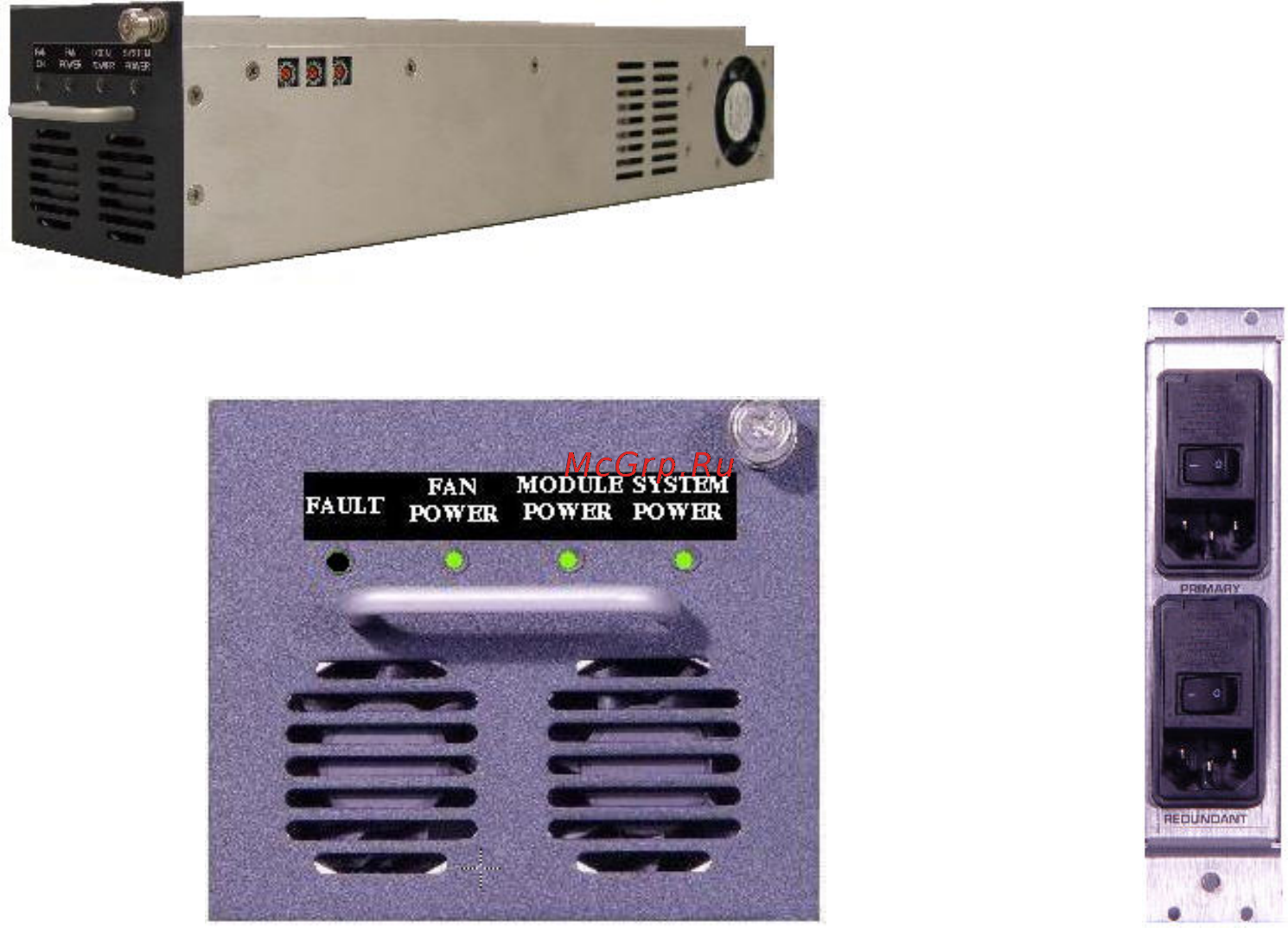

Power supply modules “auto senses” input voltages 90 to 250VAC. The fuse is located behind

the removable panel just above the AC connector on the rear of the frame.

The fuse sizes are 5A/250V.
