D to A Output Module (Optional)

The optional D to A Output module is an 8 output board that replaces a “standard” 8 output

HD/SD board.

This board will take a valid 270 Mbps 525 or 625 digital video signal and output a valid NTSC or

PAL composite video signal.

There are 8 D to A converters on each board and each of them operates independently.

Each output will automatically detect the incoming signal format (525 or 625) and output the

corresponding composite output (NTSC or PAL).

The performance specifications are:

Return loss: <-30 db @ 5 MHz

Differential gain: +/- 0.3 percent @ 3.58 MHz or 4.443 MHz

Differential phase: +/- 0.5 degrees @ 3.58 MHz or 4.443 MHz

10 bit D to A

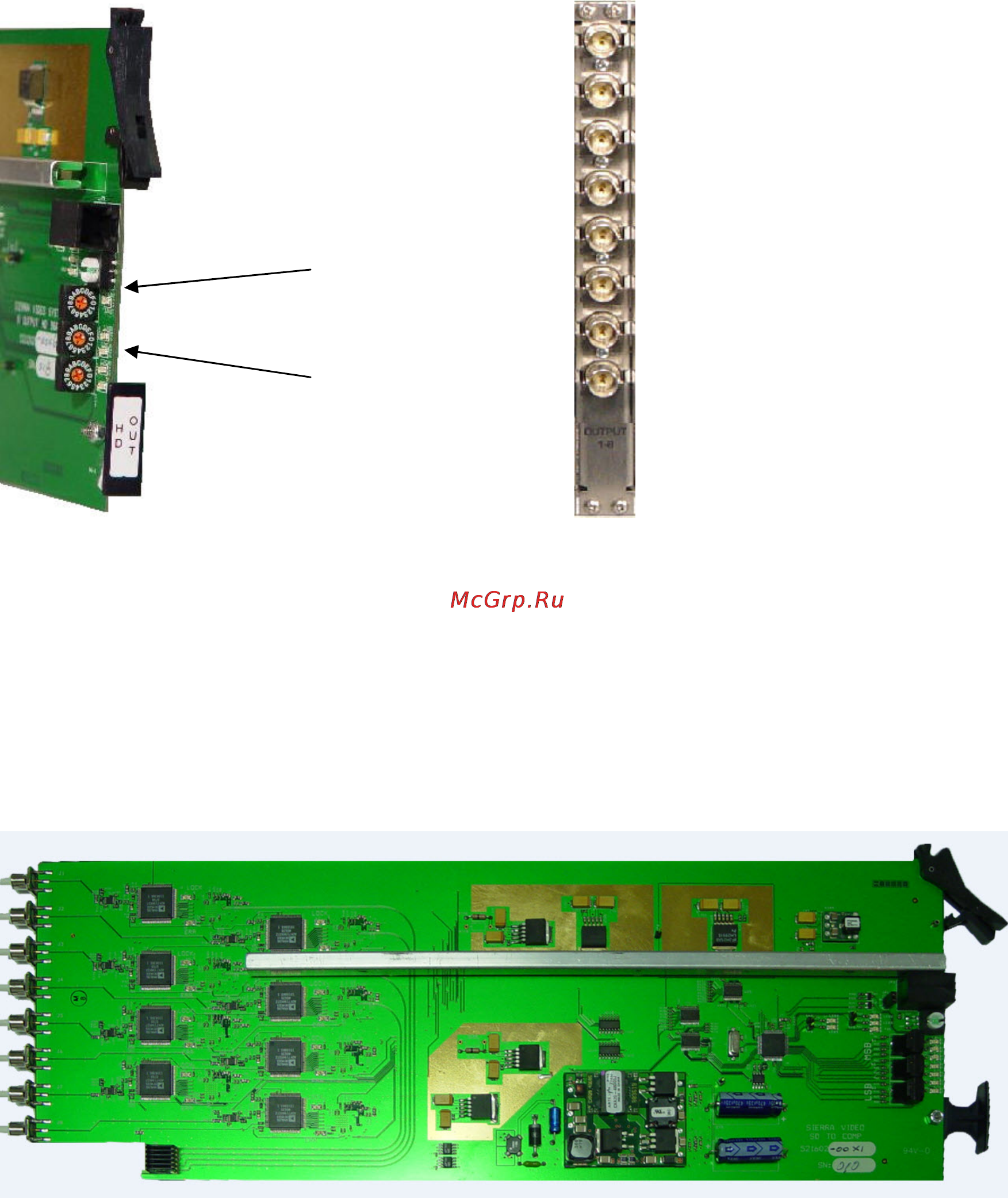

Address Switches

BNC Rear Panel

Reset Button
