PONDEROSA

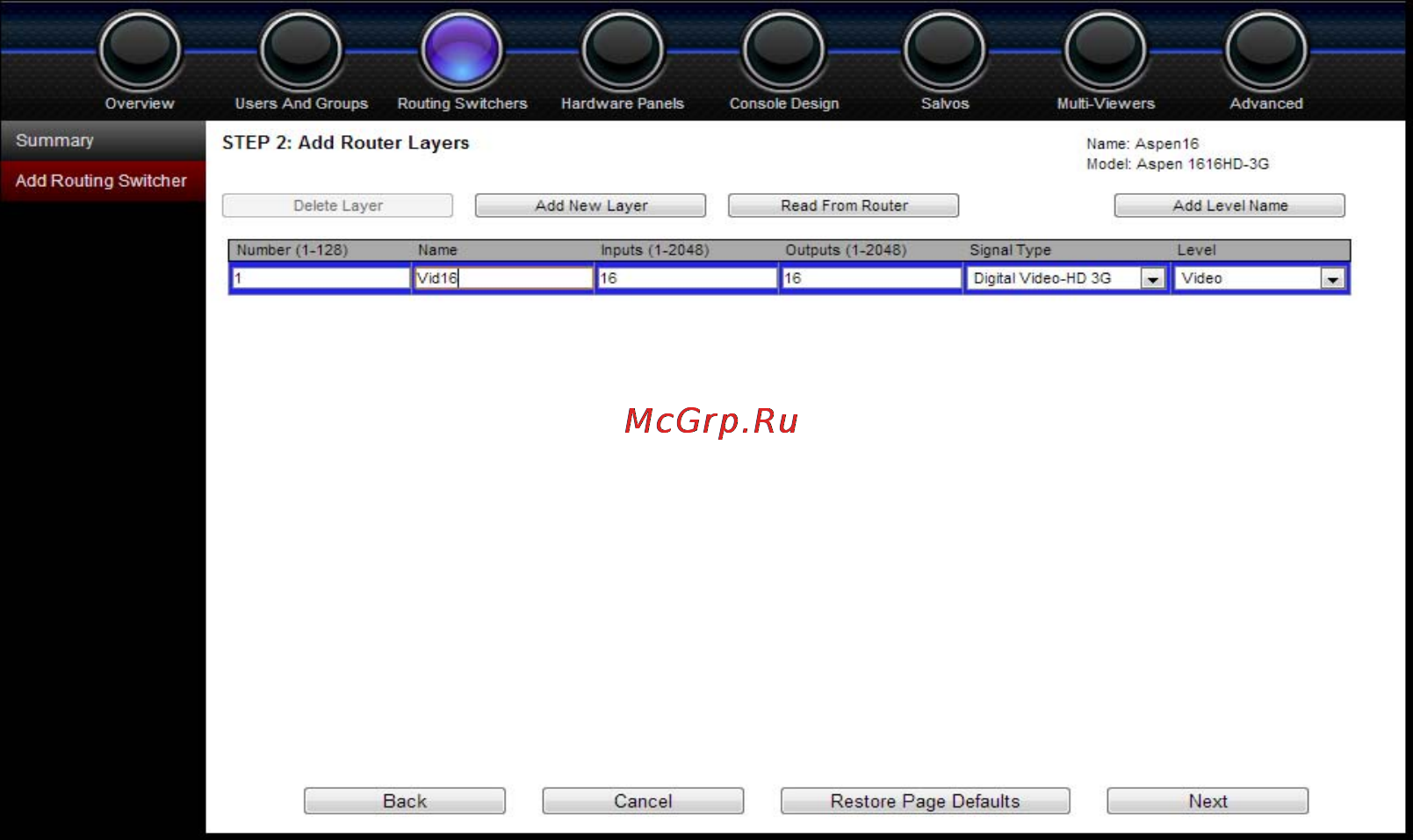

STEP 2: Add Router Layers

The second step in configuring a new routing switcher adds one or more layers to the

routing switcher. This step includes creation or selection of the following parameters:

• Layer Number

• Layer Name

• Quantity of Inputs

• Quantity of Outputs

• Signal Type,

• Level and Level Name

Multiple layers and levels can be created. Details about this step are as follows:

Limits:

• Layer number values can range from 1 to 128.

• Layer name and level name limited to 20 characters.

Behaviors:

o The table will be populated with a single layer row.

• Delete Layer is disabled when there is only one level in the table.

• Read from Router

o This button does not appear for a virtual routing switcher or if the connection is

serial.

o If the read succeeds, the Layer name displayed will be the “Level Name” in

Sierra Host protocol. The protocol limits this name to 6 characters. The routing

switcher may have a longer level name BUT the protocol will truncate it to 6

characters.

• Add Level Name
