SIERRA VIDEO
36

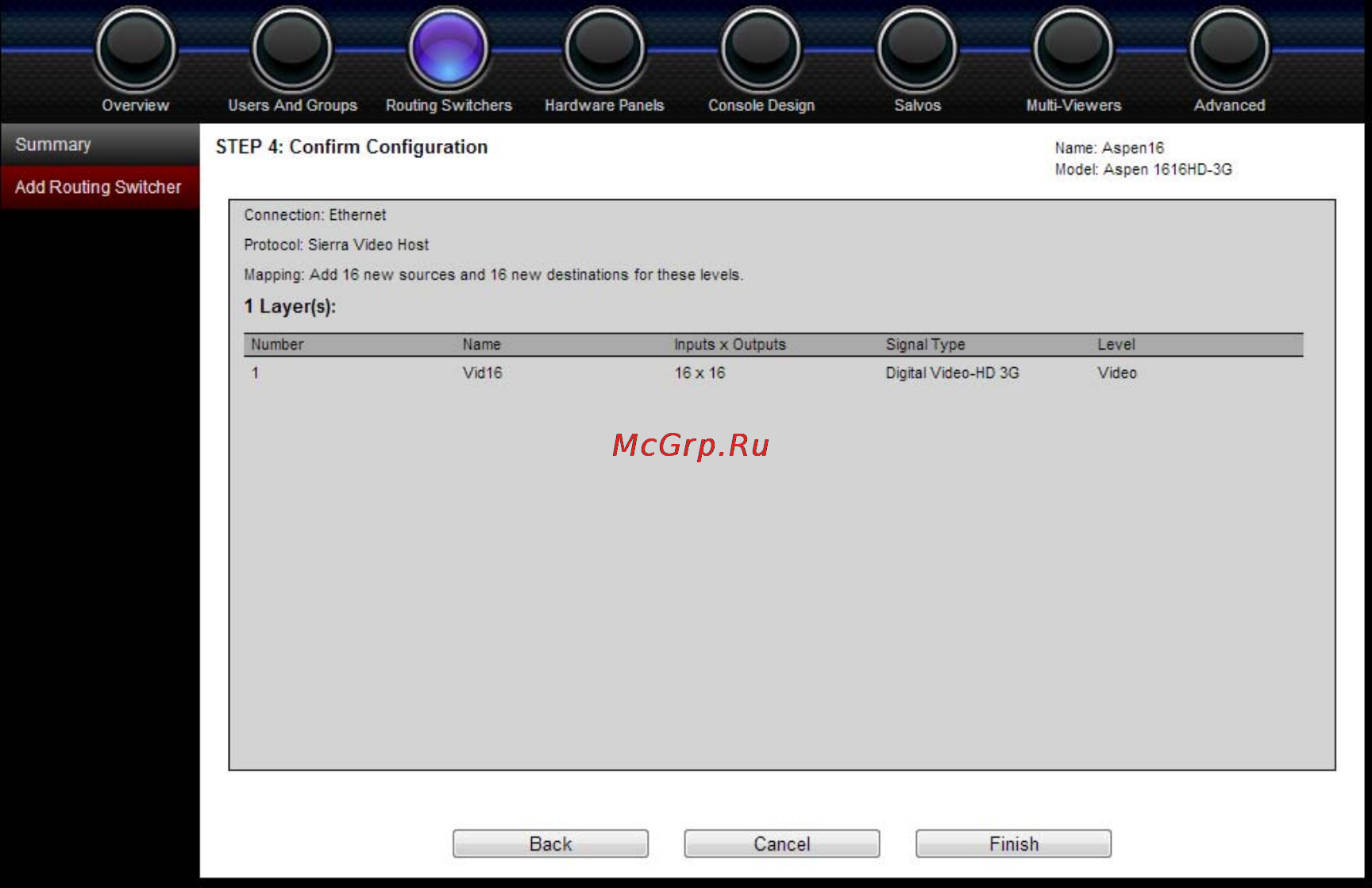

STEP 4: Confirm Configuration
STEP 4 is the final step allowing review of the selections made in the previous steps. To
make changes to the settings, simply click the Back button to the proper page and make
the changes before clicking the Finish button. If all of the selections are correct, clicking
the Finish button will save the settings for the new routing switcher. A results box will
drop down indicating whether the configuration was saved successfully. If successful, a
“Reboot” dialog will be displayed. If the user chooses “Reboot Later,” the
Manage>Overview page will show that a restart is needed as a reminder. If the Cancel
button is clicked a warning dialog warns that the routing switcher configuration will be
discarded.
