ASUS RS400-E8-PS2, RS400-E8-PS2-F
5-29

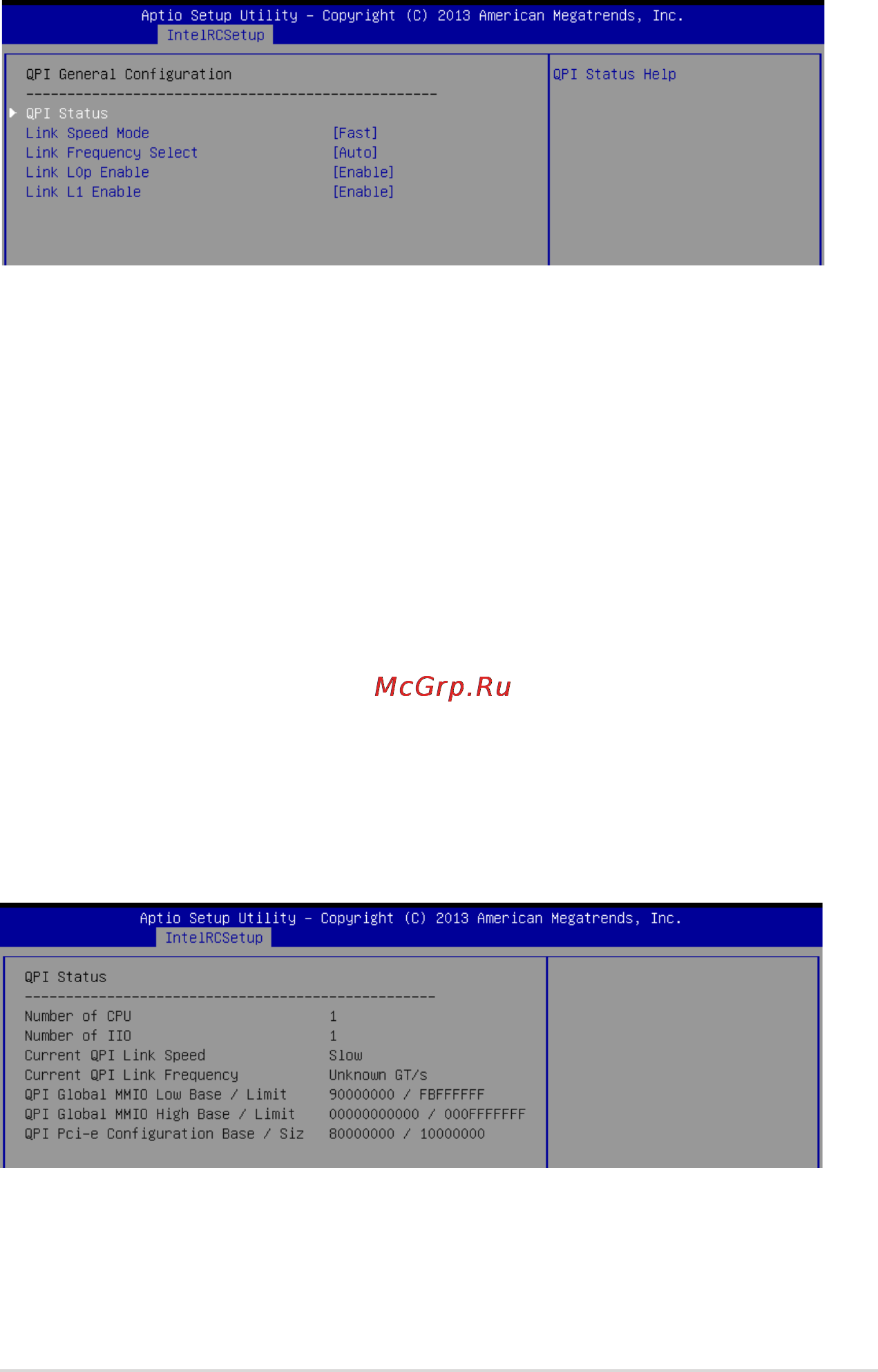

5.5.4 QPI Conguration
QPI General Conguration
QPI Status
ThisitemdisplaysinformationabouttheQPIstatus.
Link Speed Mode [Fast]
ThisitemallowsyoutoselecttheQPIlinkspeedaseitherthefastmodeorslowmode.
Congurationoptions:[Slow][Fast]
Link Frequency Select [Auto]
ThisitemallowsyouforselectingtheQPIlinkfrequency
Congurationoptions:[Auto][6.4GT/s][8.0GT/s][9.6GT/s]
QPI Link0p Enable [Enable]
Congurationoptions:[Disable][Enable]
QPI Link1 Enable [Enable]
Congurationoptions:[Disable][Enable]
QPI Status
