ASUS RS400-E8-PS2, RS400-E8-PS2-F
5-21
5.4.10 Trusted Computing

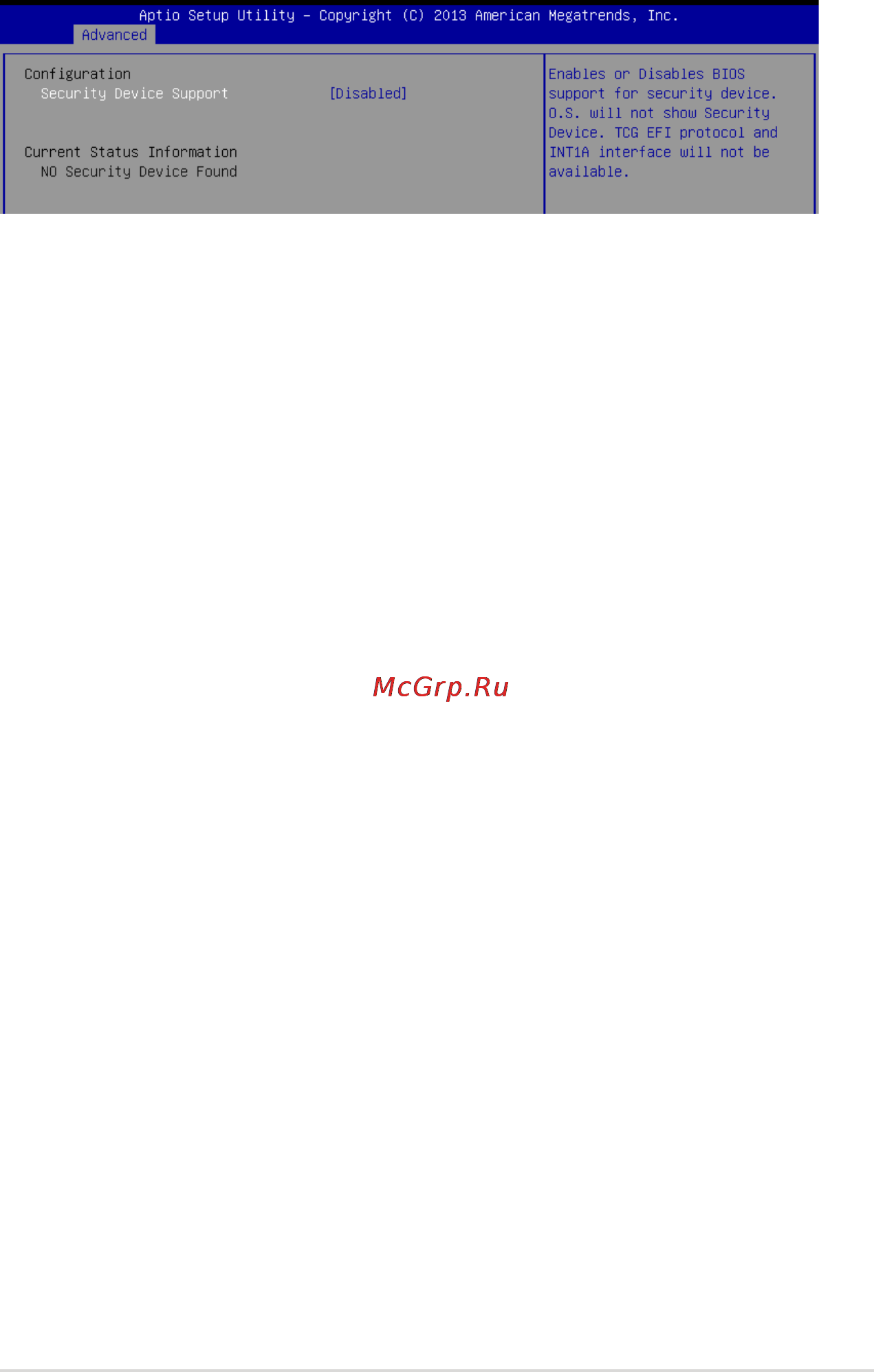

Conguration
Security Device Support [Disabled]
Allows you to enable or disable the BIOS support for security device.
Congurationoptions:[Disabled][Enabled]
