2-5
ASUS RS400-E8-PS2, RS400-E8-PS2-F
RS400-E8-PS2-F

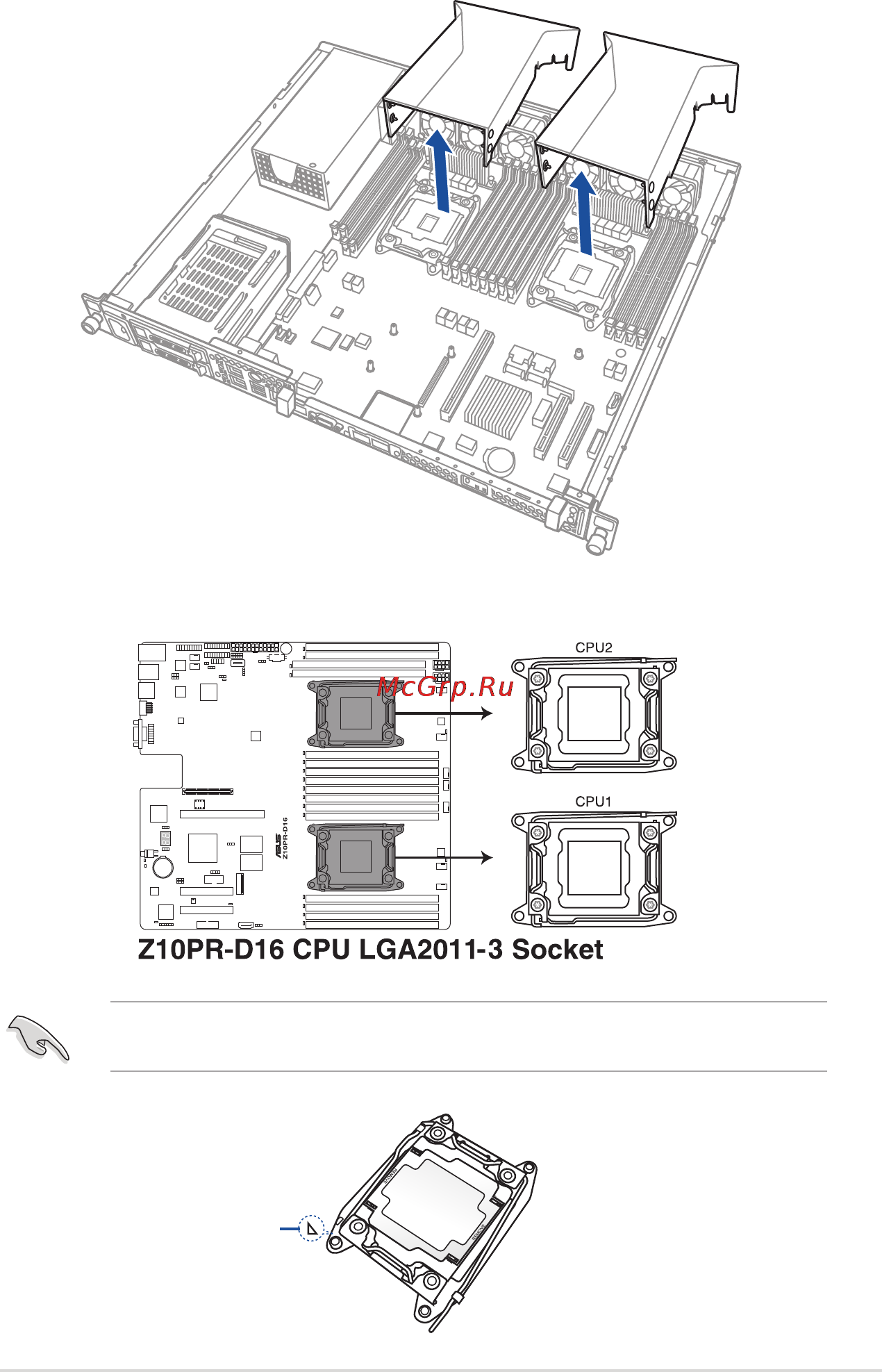

2. LocatetheCPUsocketonthemotherboard.
BeforeinstallingtheCPU,ensurethatthesocketboxisfacingtowardyouandthetriangle
mark is on the lower-left position.
triangle mark
