ASUS RS400-E8-PS2, RS400-E8-PS2-F
1-7

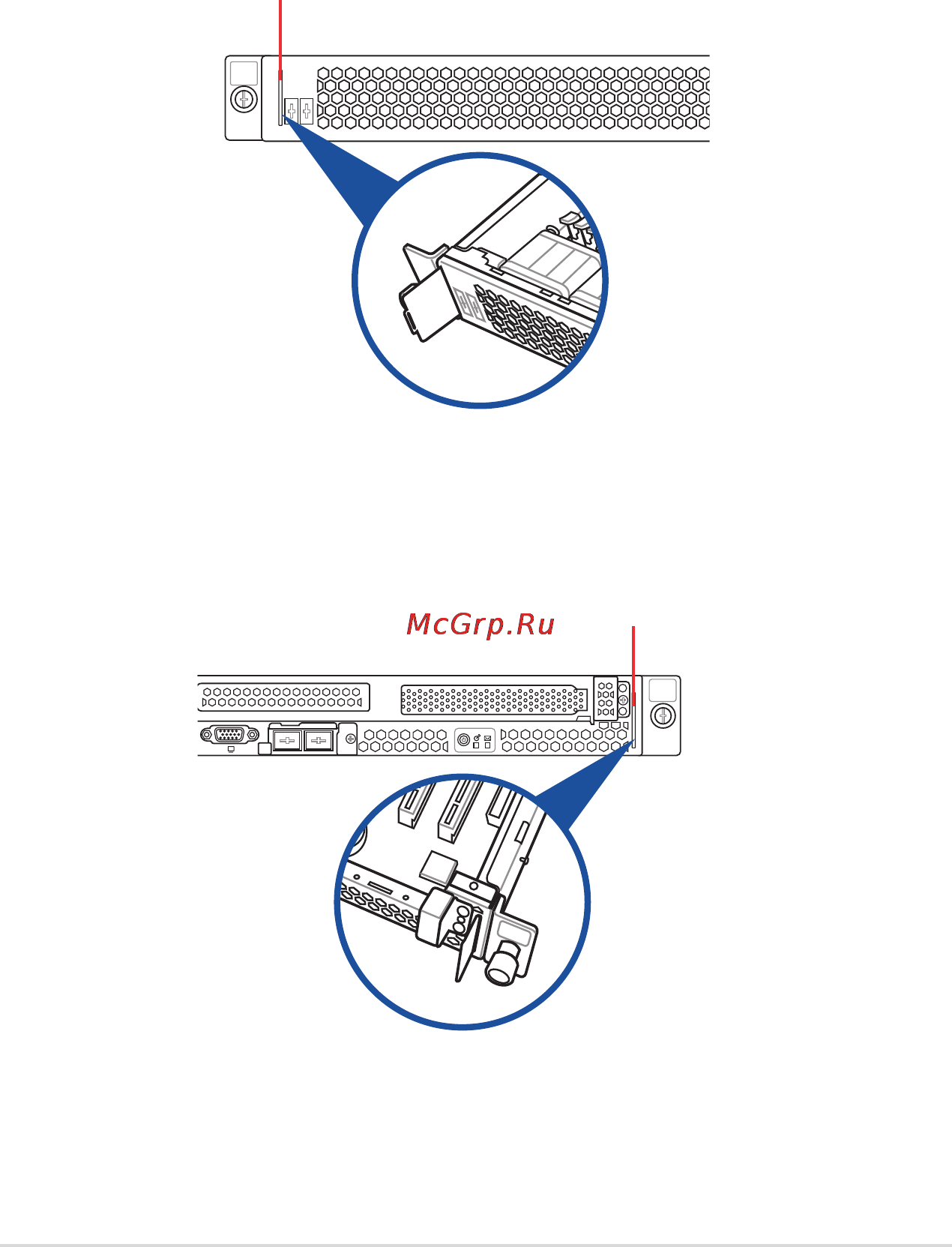

Asset tag
The Asset tag is a simple but useful device that is conveniently located on the front panel of
the server that you can pull out or easily slide back in. It has a piece of paper that allows you
to write down important information about to the server.
1
2
Q-Code
DM
1
2
3
4
RESET
RS400-E8-PS2
RS400-E8-PS2-F
1
2
3
4
RESET
Q-Code
1
2
1
Asset tag
Asset tag
