ASUS RS400-E8-PS2, RS400-E8-PS2-F
5-23
USB hardware delays and time-outs
USB transfer time-out [20 sec]
Thetime-outvalueforcontrol,bulk,andinterrupttransfer.
Congurationoptions:[1sec][5sec][10sec][20sec]
Device reset time-out [20 sec]
USB mass storage device start unit command time‑out.
Congurationoptions:[10sec][20sec][30sec][40sec]
Device power-up delay [Auto]
Thisisthemaximum time the device will take before it properly reports itself to the host
controller.
Congurationoptions:[Auto][Manual]

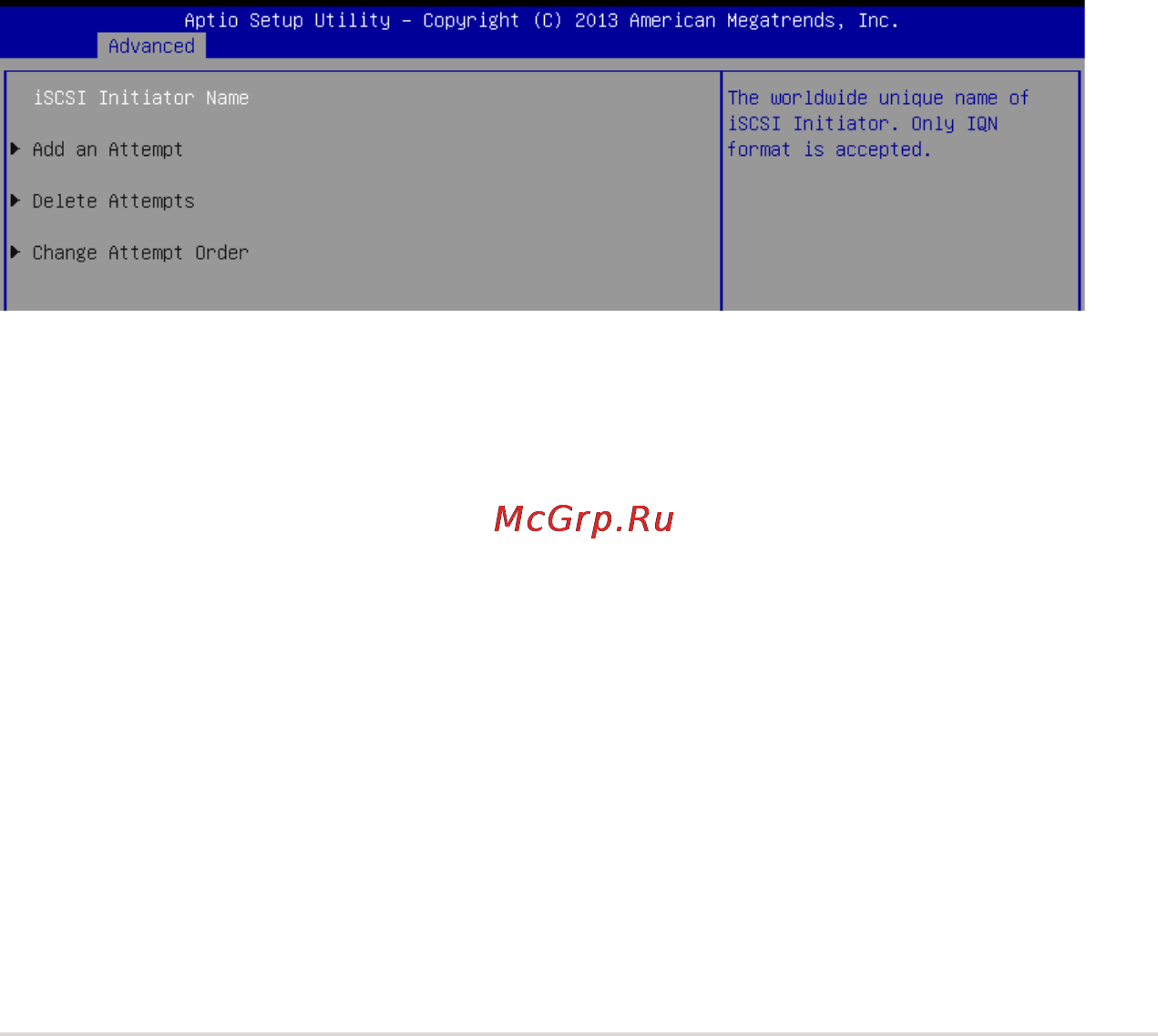

5.4.12 iSCSI Conguration
AllowsyoutoconguretheiSCSiparameters.
