7-4 Chapter 7: Driver installation
7.1.2 Installing the RAID controller driver
During Windows
®
Server 2008 OS installation
To install the RAID controller driver when installing Windows
®
Server 2008 OS
1. Boot the computer using the Windows
®
Server 2008 OS installation disc. Follow the
screen instructions to start installing Windows Server 2008.

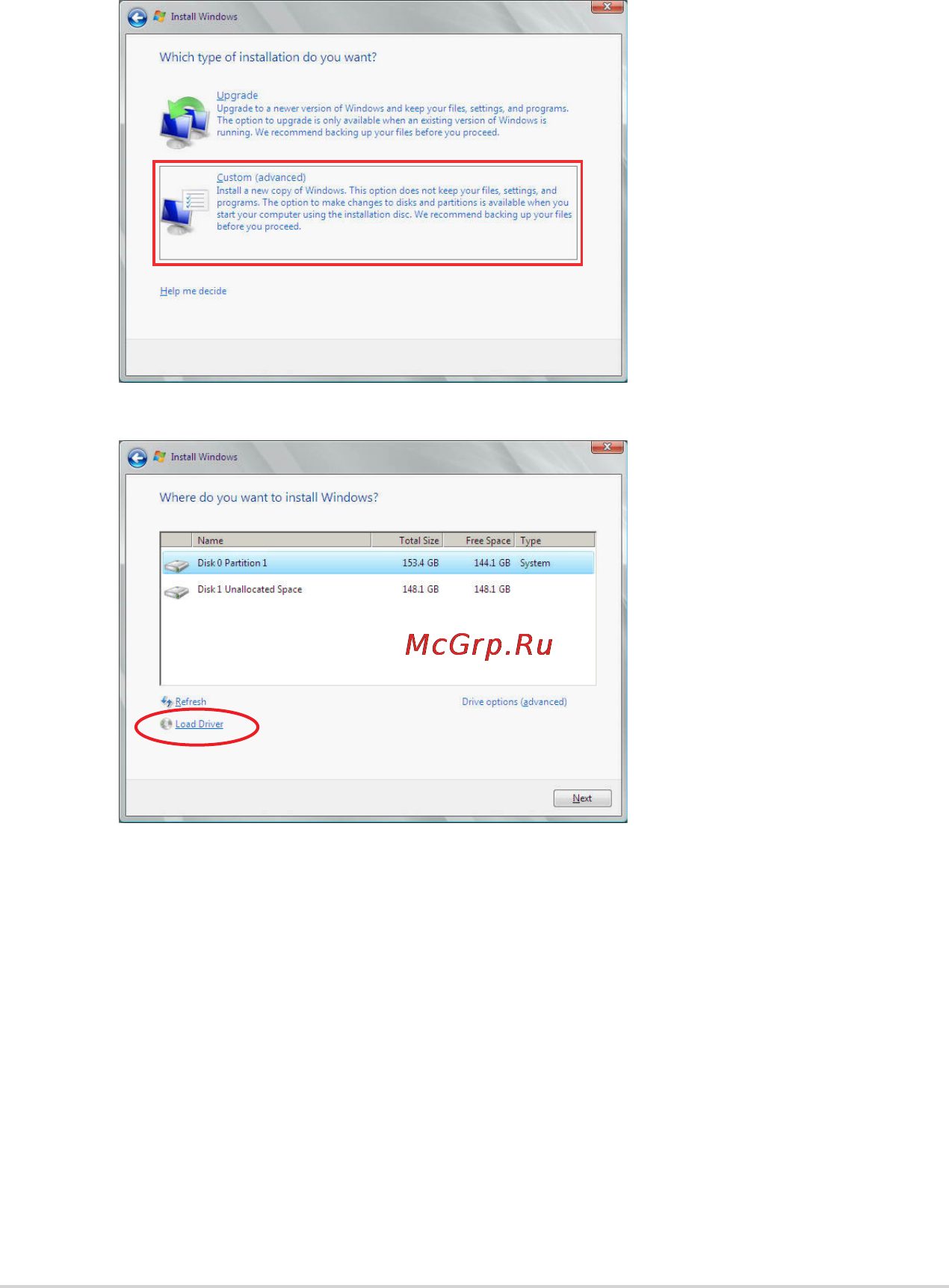

2. When prompted to choose a type of installation, click Custom (advanced).
3. Click Load Driver.
