Chapter 2: Hardware setup
2-10

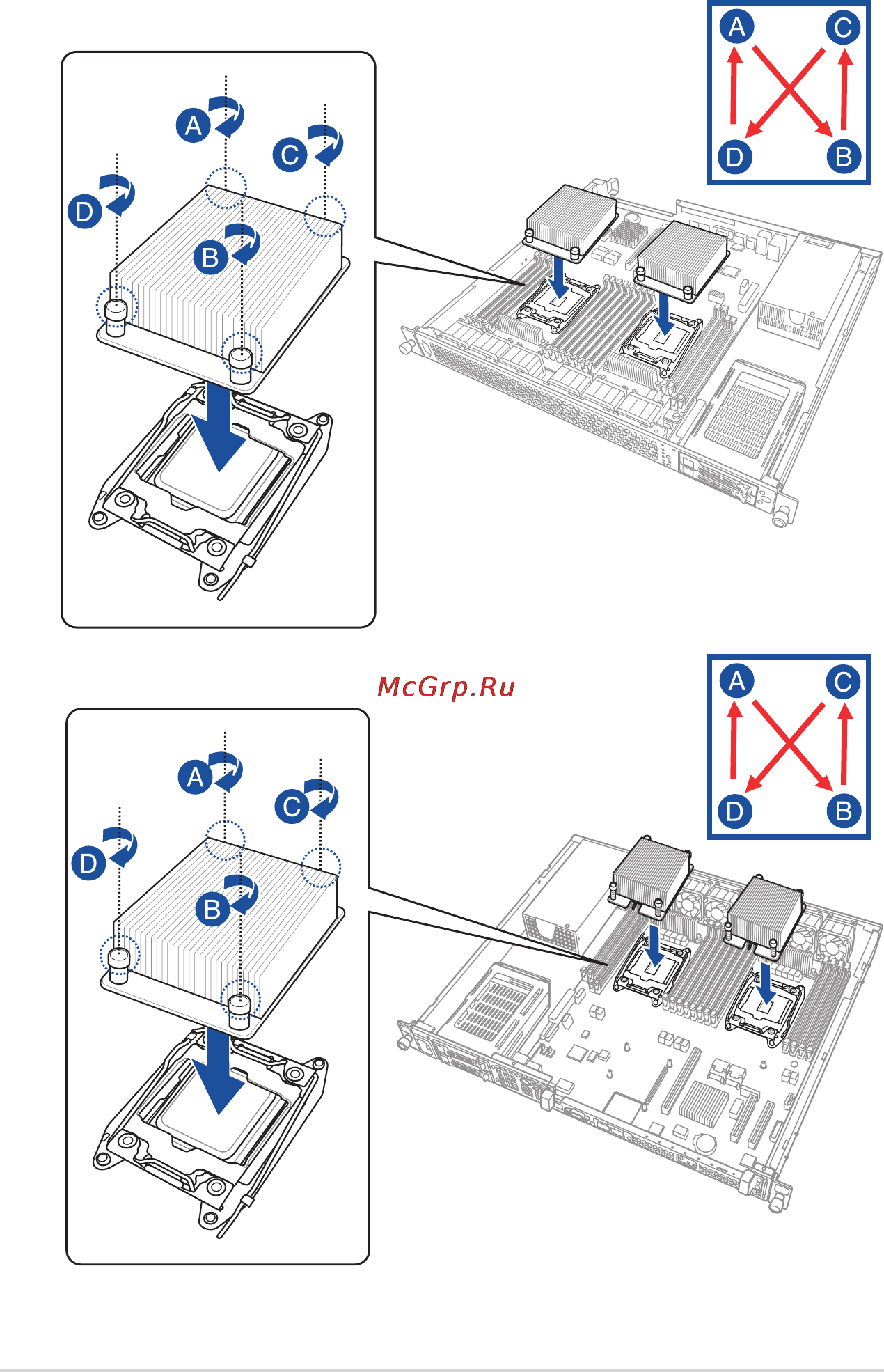

14. Install the heatsink according to the illustrations below.
RS400-E8-PS2
RS400-E8-PS2-F
15. RecovertheairductwhentheCPUandDIMMsareinstalled.
