Asus rs400-e8-ps2 [27/178] Recovering the rear cover
![Asus rs400-e8-ps2 [27/178] Recovering the rear cover](/views2/1161716/page27/bg1b.png)
2-3
ASUS RS400-E8-PS2, RS400-E8-PS2-F

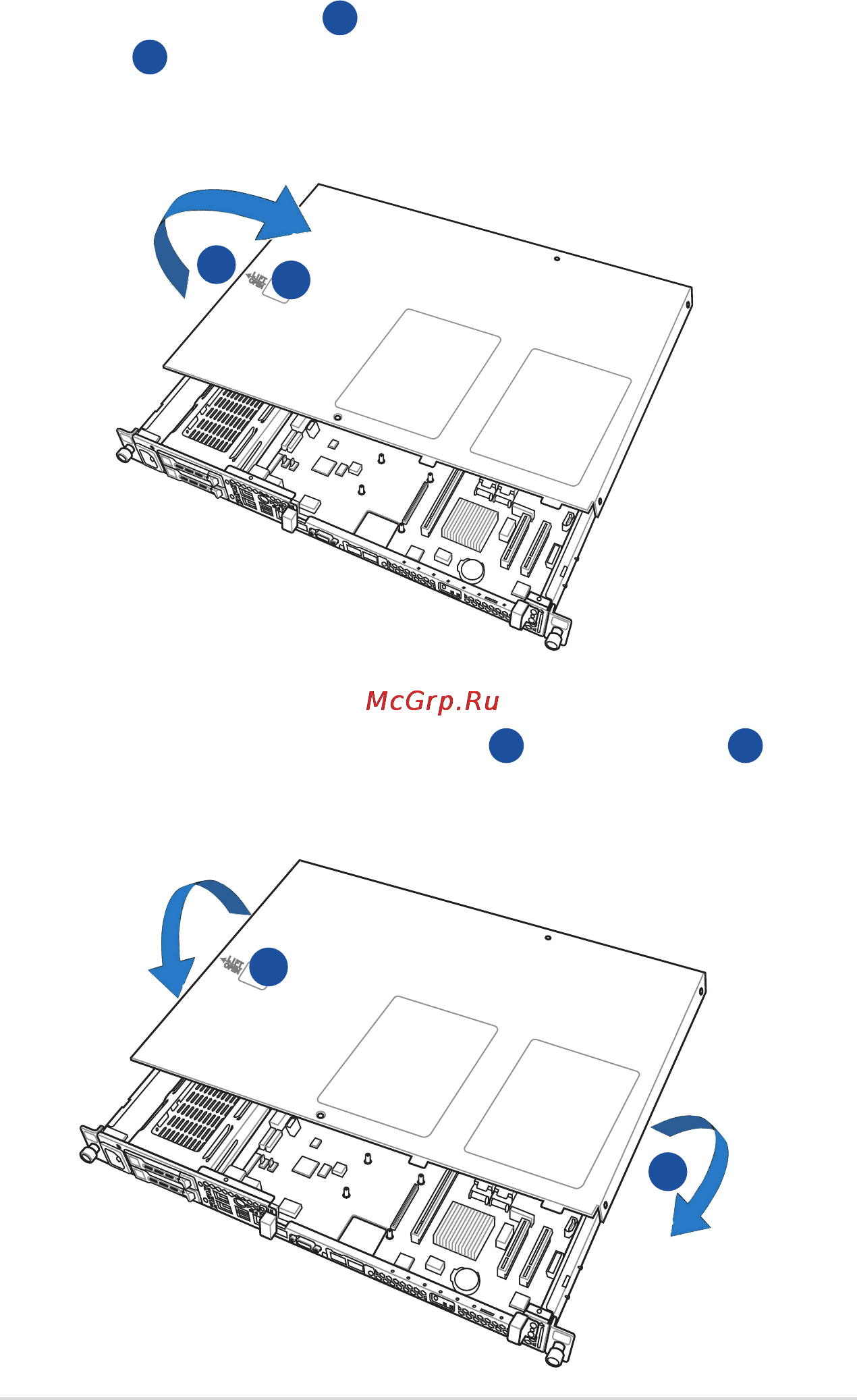

2. Place your thumb in the notch (
1
)onthecoverwiththeotherfourngersholdonthe
left side (
2
). Lift the left side of the cover (press the right side with the other hand to
improve the force applied on the left) and then the right side to remove the cover from
the chassis.
1
2
2.1.2 Recovering the rear cover
1. Place the cover onto the chassis on the right side (
1
) and then the left side (
2
).
Press down the left side to lock the cover on the chassis.
2. Secure the cover to the chassis with the screws you removed earlier.
1
2
