7-25ASUS RS400-E8-PS2, RS400-E8-PS2-F
7.7 Intel
®
Rapid Storage Technology enterprise 4.0
installation
This section provides the instructions on how to install the Intel
®
Rapid Storage Technology
enterprise 4.0 on the system.
You need to manually install the Intel
®
Rapid Storage Technology enterprise 4.0 utility on a
Windows
®
operating system.
To install the Intel
®
Rapid Storage Technology enterprise 4.0 utility:

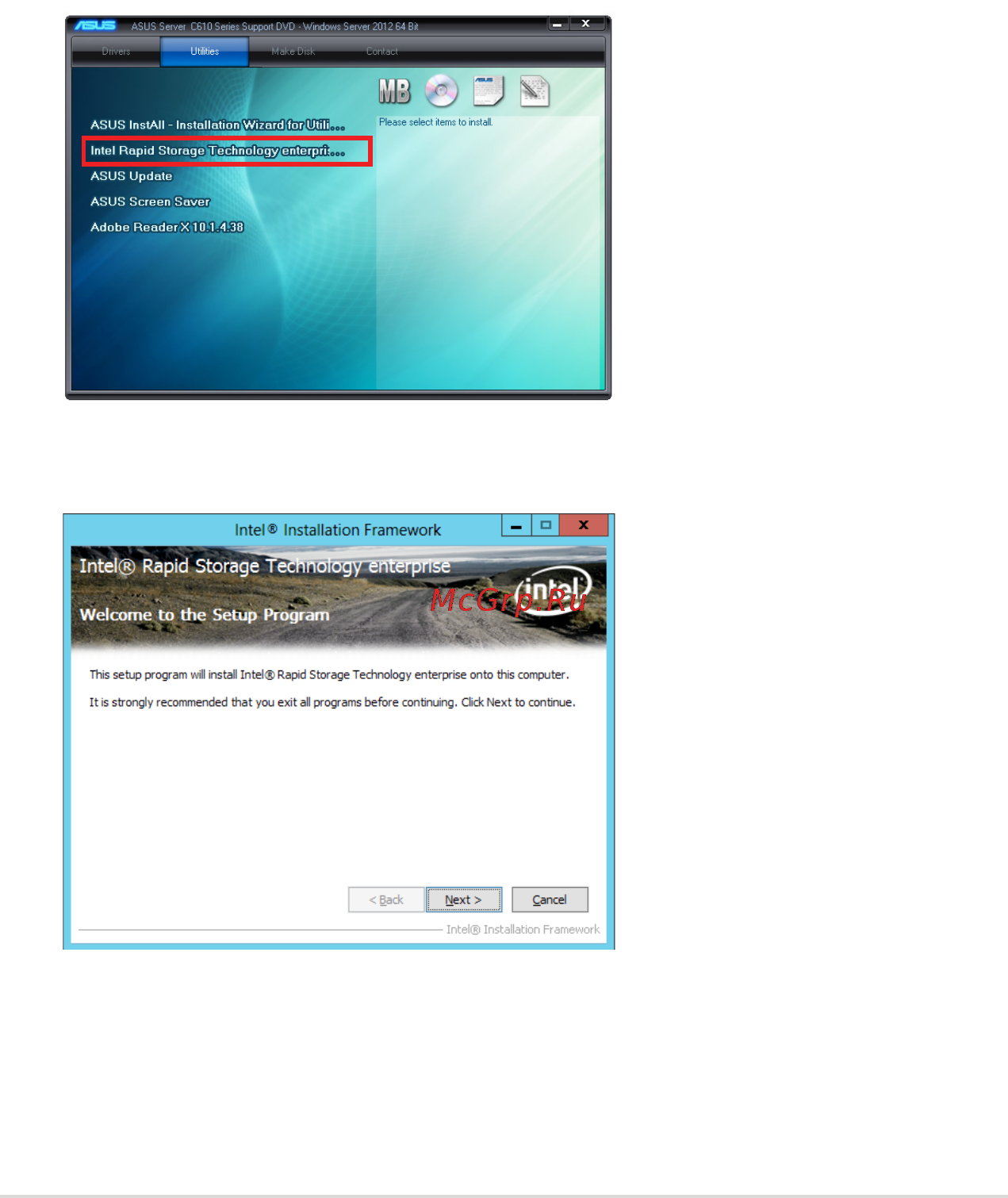

1. Restart the computer, and then log on with Administrator privileges.
2. Insert the motherboard/system support DVD to the optical drive, and nd the utility
menu.
3. Click the Intel
®
Rapid Storage Technology enterprise 4.0 to begin installation.
4. When the Welcome to the Setup Program appears, click Next to start the installation.
