ASUS RS400-E8-PS2, RS400-E8-PS2-F
5-41

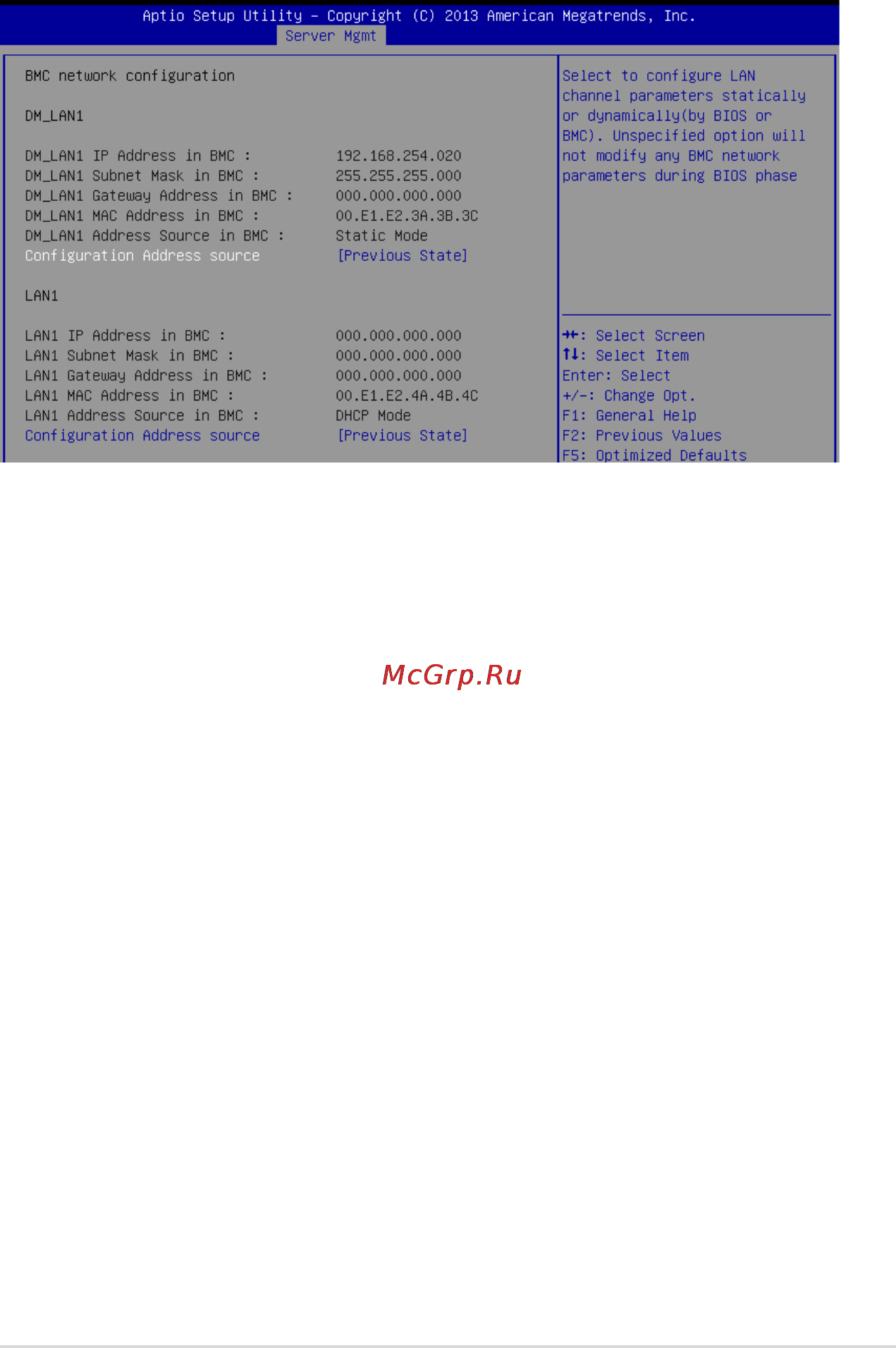

Bmc network conguration
Thesub-itemsinthiscongurationallowyoutoconguretheBMCnetworkparameters.
Configuration Address source DM_LAN1/LAN1 [Previous State]
ThisitemallowsyoutocongureLANchannelparametersstatisticallyordynamically(by
BIOSorBMC).UnspeciedoptionwillnotmodifyanyBMCnetworkparametersduring
BIOS phase.
Congurationoptions:[PreviousState][Static][DynamicBmcDhcp]
[DynamicBmcNonDhcp]
View System Event Log
This item allows you to view the system event log records.
IPv6 BMC Network Conguration
ThisitemallowsyoutoconguretheparametersettingsofIPv6BMCnetwork.
IPv6 Display Full Field [Enable]
Displays the full or brief IPv6 Field.
Congurationoptions:[Disable][Enable]
IPv6 Display Full Formula [Enable]
Displays the full or brief IPv6 Formula.
Congurationoptions:[Disable][Enable]
IPv6 Display Letter Case [Upper Case]
Displays the uppercase or lowercase letters of the alphabet.
Congurationoptions:[LowerCase][UpperCase]
IPv6 BMC Lan Option [Enable]
This item allows you to enable or disable the IPv6 BMC LAN channel function.
DisablingthisitemwillnotmodifyanyBMCnetworkduringBIOSphase.
Congurationoptions:[Disable][Enable]
