2-23
ASUS RS400-E8-PS2, RS400-E8-PS2-F
2.6 Cable connections
• Thebundledsystemcablesarepre-connectedbeforeshipment.Youdonotneedto
disconnect these cables unless you will remove pre-installed components to install
additional devices.
• RefertoChapter4fordetailedinformationontheconnectors.

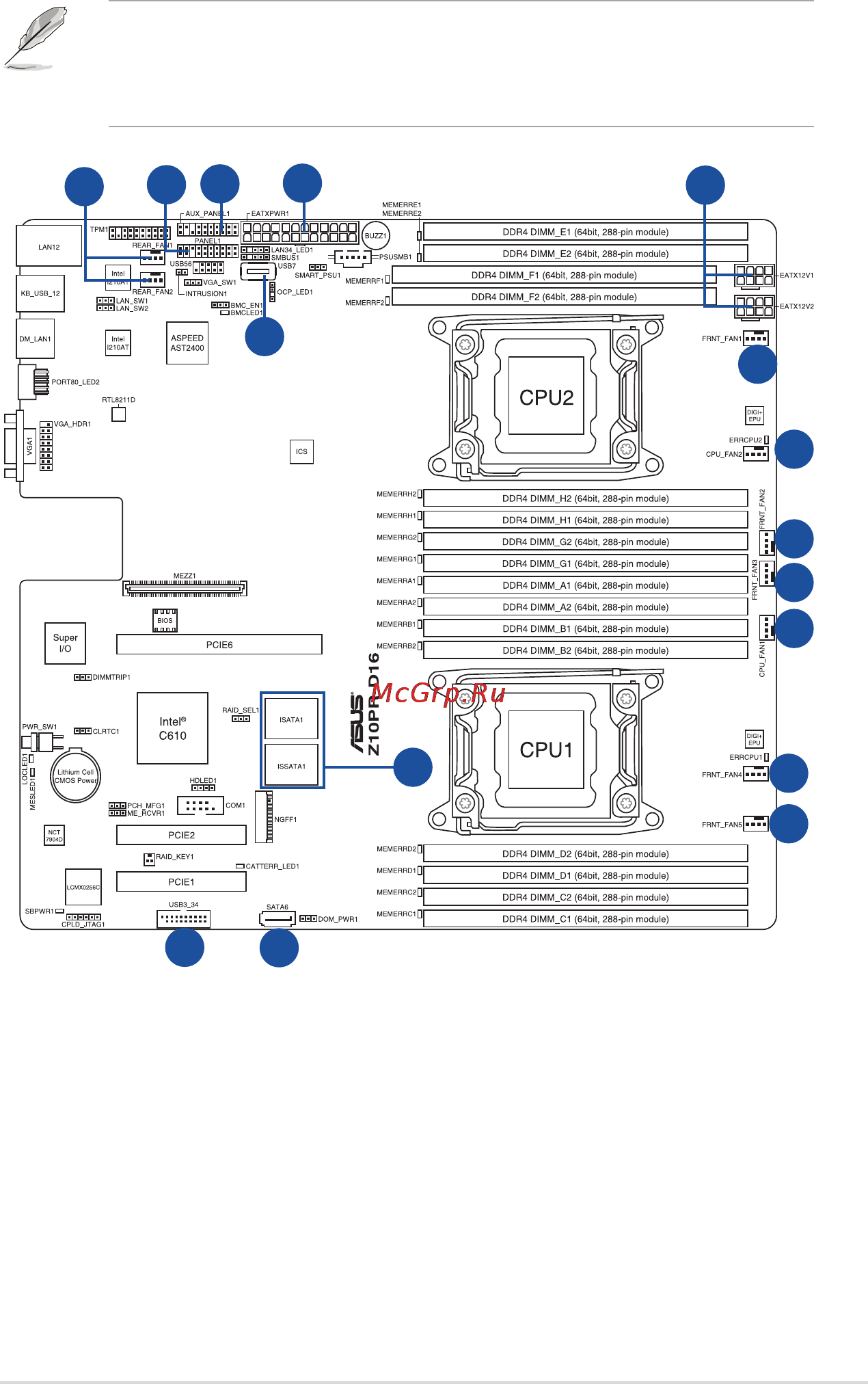

Standard cables connected to the motherboard
1. 24-pin ATX power connector (from power supply to motherboard)
2. 8-pin12Vpowerconnector(frompowersupplytomotherboard)
3. System fan connector (from system fan to motherboard)
4. USBconnector(frommotherboardtofrontI/Oboard)
5. SATAportsconnectors(systemdefault;frommotherboardtoSATA/SASbackplane)
6. Systemauxiliarypanelconnector(frommotherboardtofrontI/Oboard)
7. Systempanelconnector(frommotherboardtofrontI/Oboard)
2
7
3
5
3
3
3
3
3
4
5
3
1
6
3
4
