Chapter 2: Hardware setup
2-6

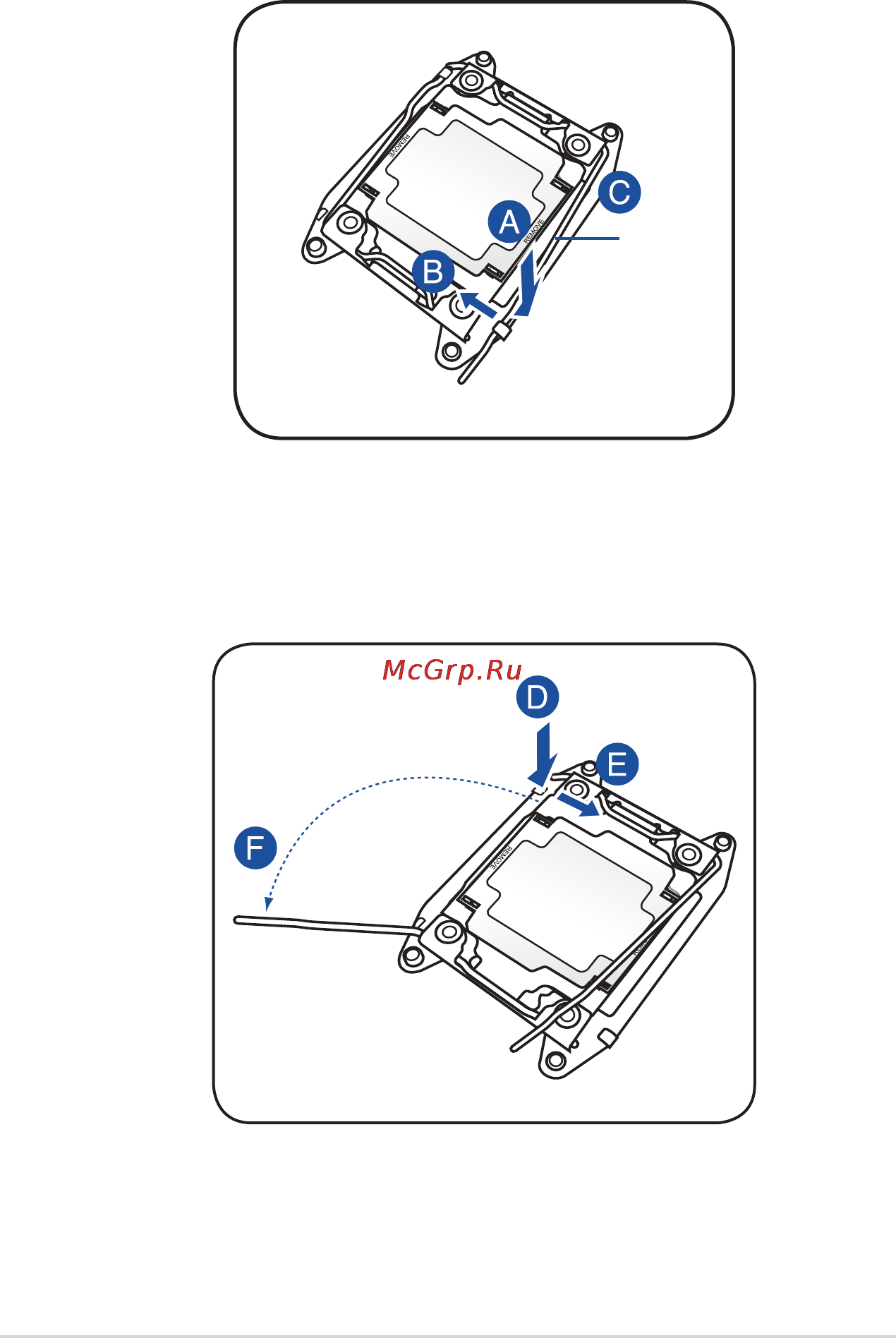

3. Presstherightloadleverdown(A)thenmoveittotheleft(B)untilitisreleasedfrom
the retention tab (C).
4. Presstheleftloadlever(D),move it to the right (E) until it is released from then
retentiontab(F),thengentlypullituntilitisfullyextended.
Load lever
