7-19ASUS RS400-E8-PS2, RS400-E8-PS2-F

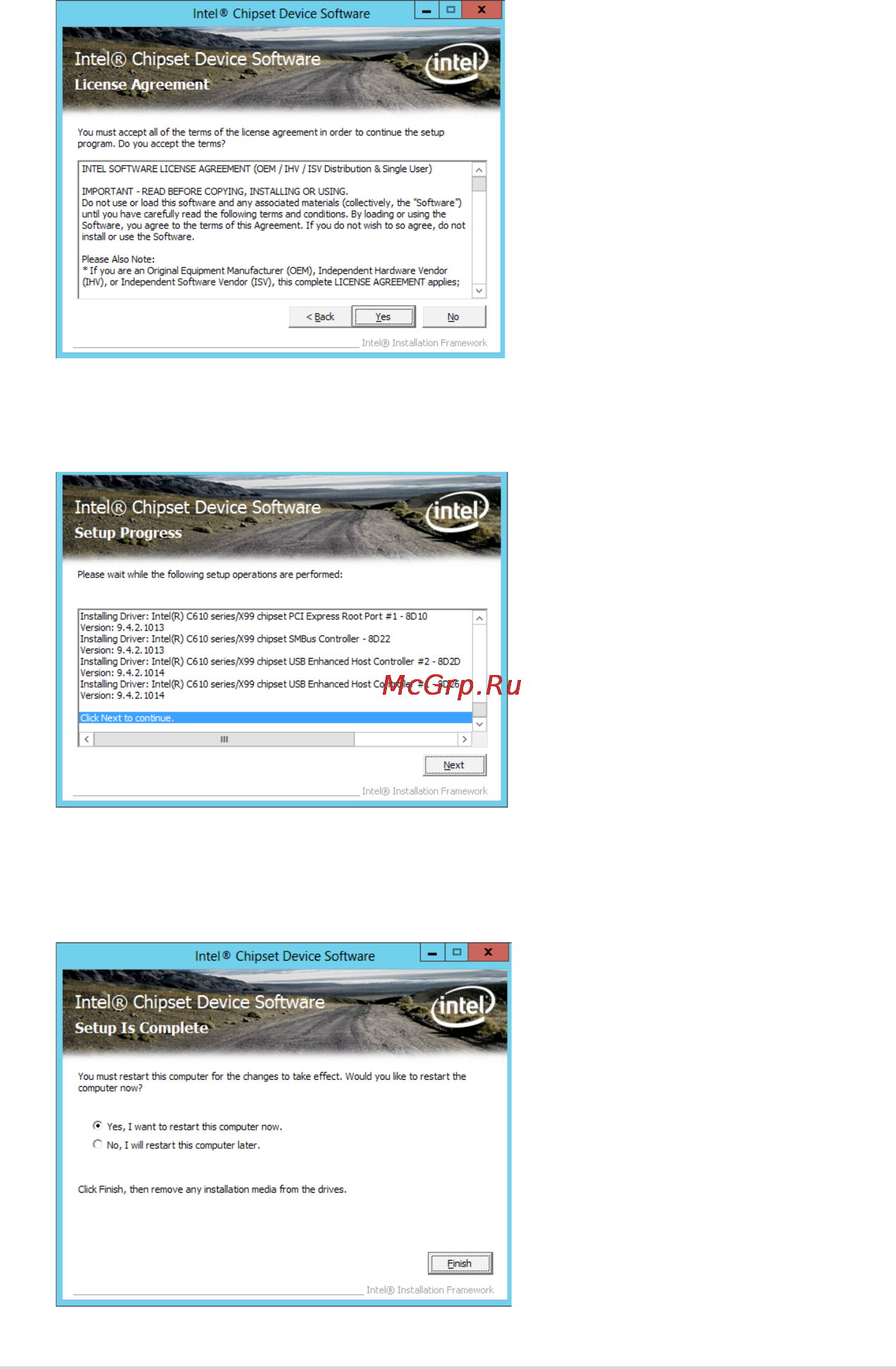

5. Select Yes to accept the terms of the License Agreement and continue the process.
6. Read the Readme File Information and press Next to continue the installation.
7. Toggle Yes, I want to restart the computer npw and click Finish to complete the
setup process.
