7-21ASUS RS400-E8-PS2, RS400-E8-PS2-F

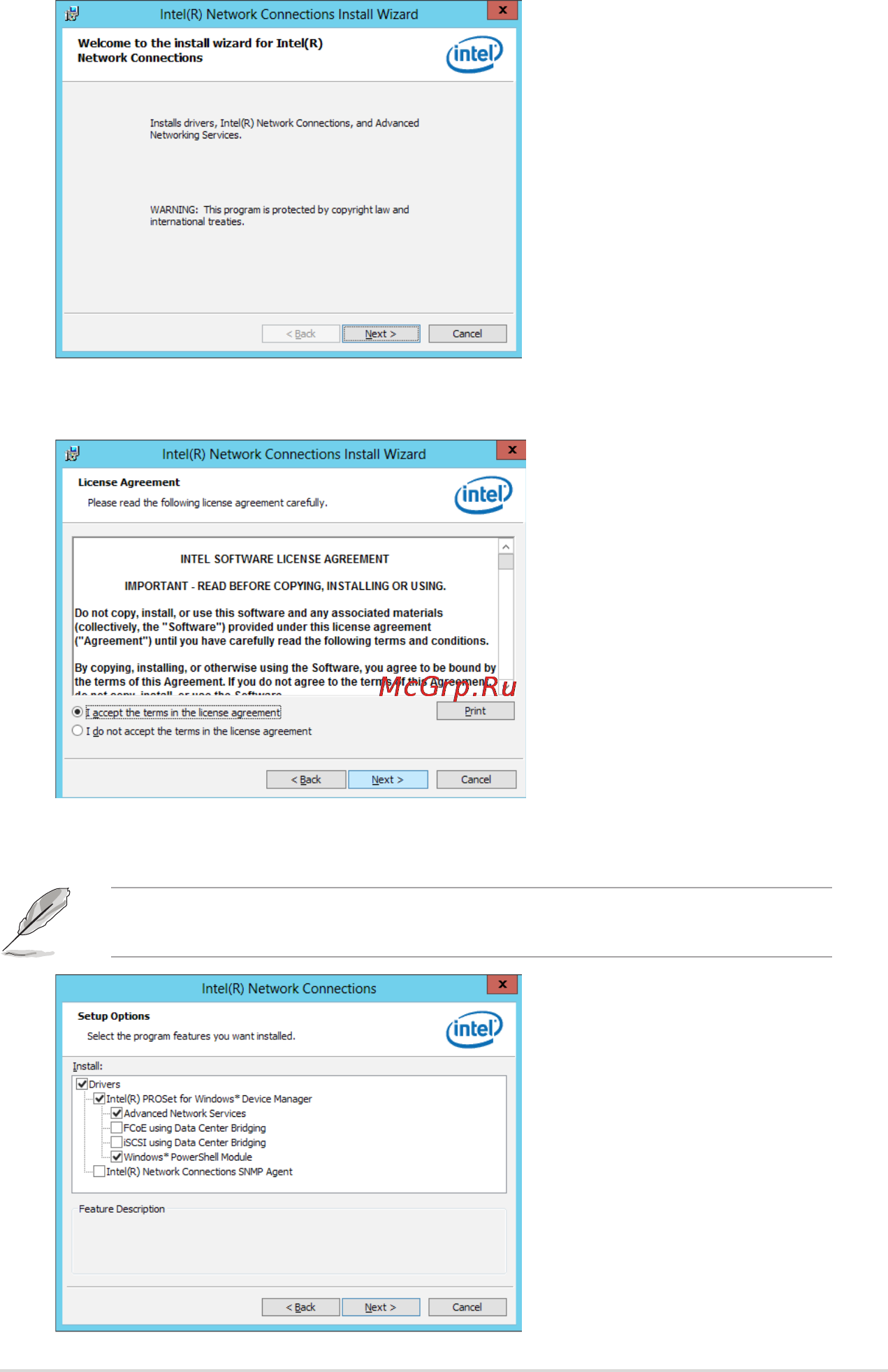

6. Click Next when the Intel(R) Network Connections–InstallShield Wizard window
appears.
7. Tick I accept the terms in the license agreement and click Next to continue.
8. From the Setup Options window, click Next to start the installation.
By default, Intel(R) PROSet for Windows Device Manager and Windows PowerShell
Module are ticked.
