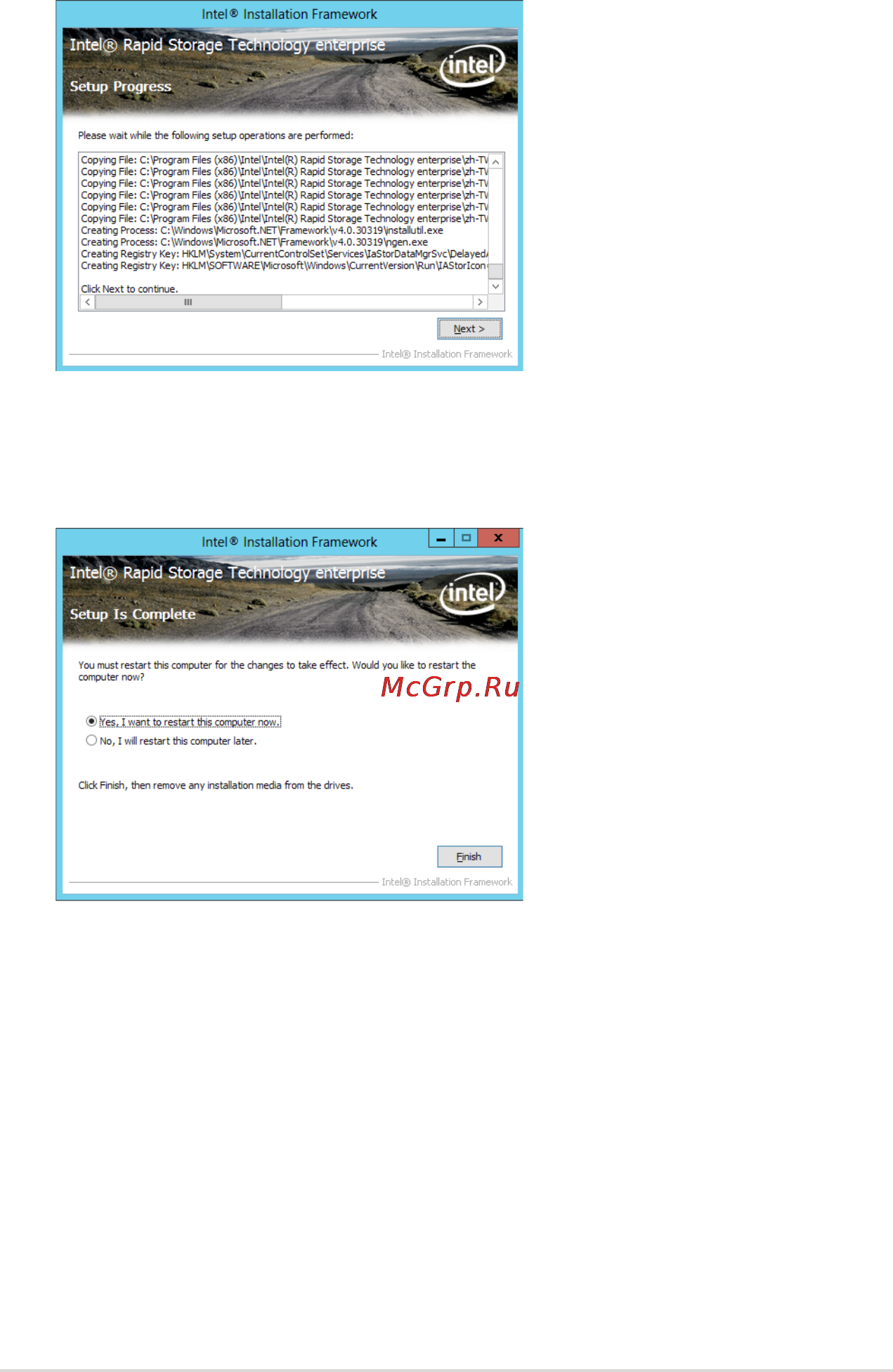

7-27ASUS RS400-E8-PS2, RS400-E8-PS2-F
9. Select Yes, I want to restart my computer now and click Finish to restart your
computer before using the program.
8. After completing the installation, click Next to complete the setup process.
