Chapter 2: Hardware setup
2-8

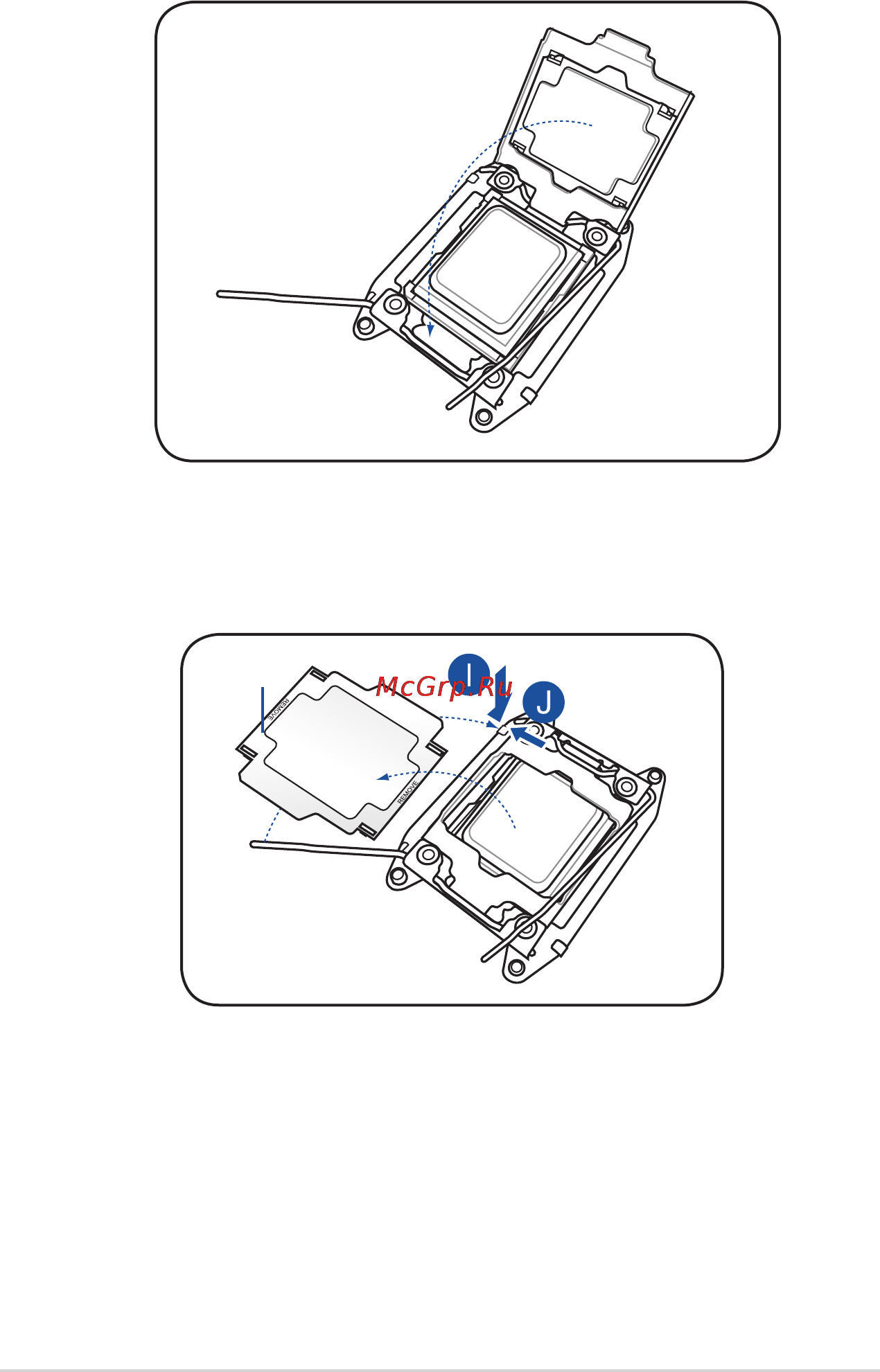

10 GentlypushtheloadplatejustenoughtoletitsitontopoftheCPU.
11. Pushtheleftloadleverdown(I)ensuringthattheedgeoftheloadplateisxedand
tuckedsecurelyunderthelever(J),thenthePnPcapwillejectautomatically.
PnP cap
