Chapter 4: Motherboard information
4-6

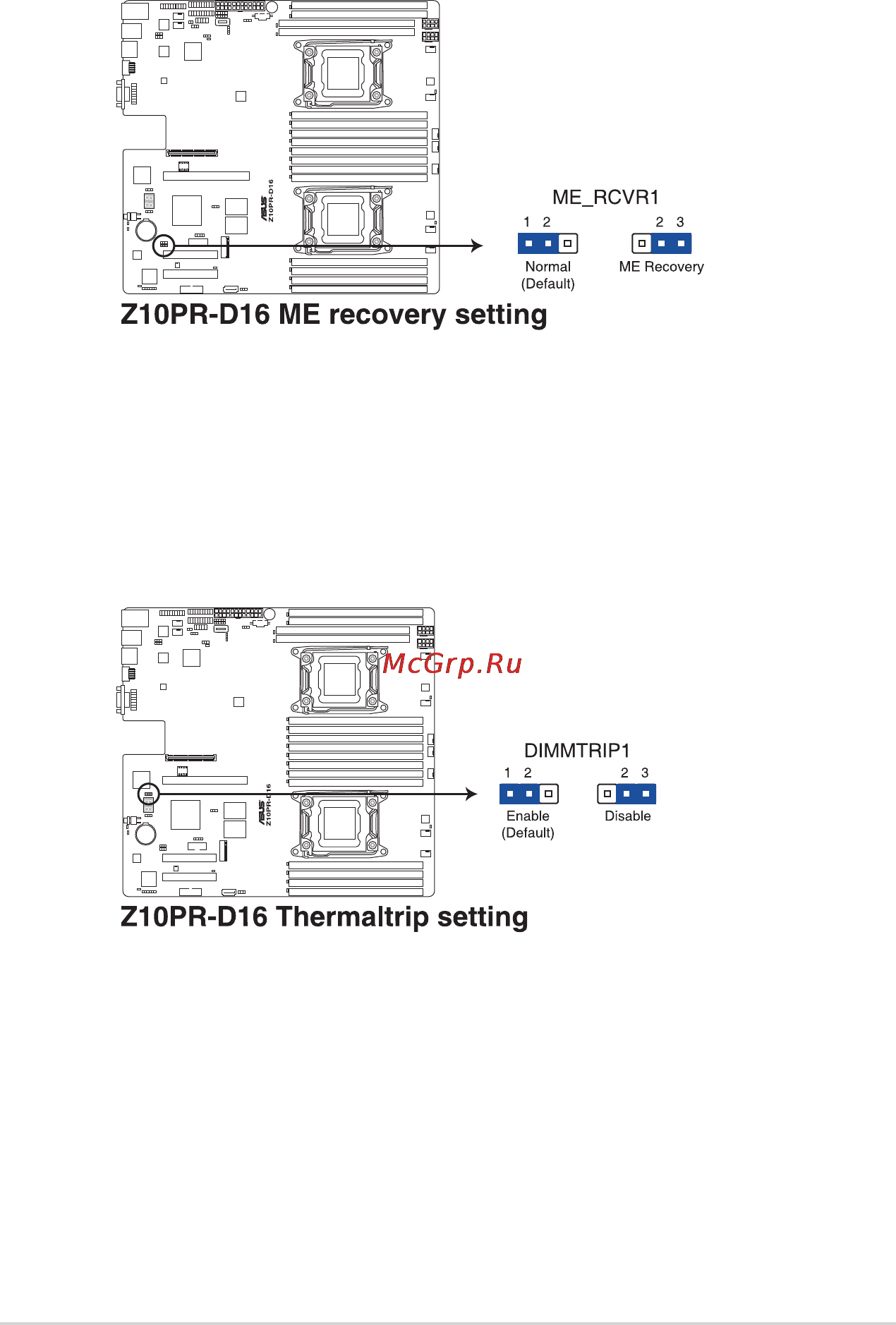

4. MErmwareforcerecoverysetting(3-pinME_RCVR1)
ThisjumperallowsyoutoforceIntel
®
ManagementEngine(ME)bootfromrecovery
modewhenMEbecomescorrupted.
5. DDR4thermaleventsetting(3-pinDIMMTRIP1)
ThisjumperallowsyoutoenableordisableDDR4DIMMthermalsensingeventpin.
