DG834G Reference Manual
8-2 Virtual Private Networking
v3.0, September 2005
Overview of VPN Configuration
Two common scenarios for configuring VPN tunnels are between a remote personal computer and
a network gateway and between two or more network gateways. The DG834G supports both of
these types of VPN configurations. The Wireless ADSL Modem Router supports up to five
concurrent tunnels.
Client-to-Gateway VPN Tunnels
Client-to-Gateway VPN Tunnels provide secure access from a remote PC, such as a telecommuter
connecting to an office network.
A VPN client access allows a remote PC to connect to your network from any location on the
Internet. In this case, the remote PC is one tunnel endpoint, running the VPN client software. The
Wireless ADSL Modem Router on your network is the other tunnel endpoint. See “How to Set Up
a Client-to-Gateway VPN Configuration” on page 8-6 to set up this configuration.

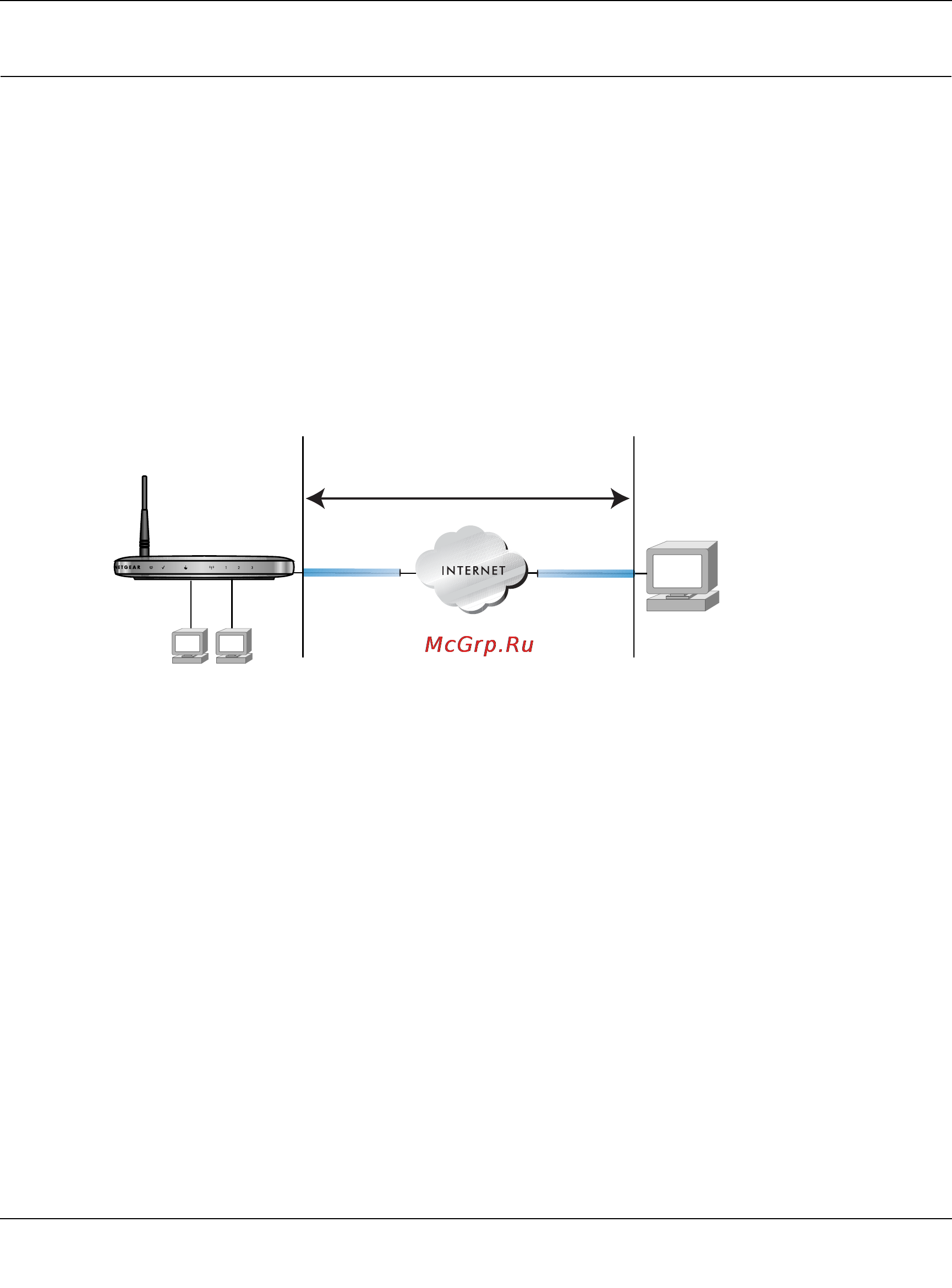

Figure 8-1
VPN Tunnel
DG834G
PC
(Running NETGEAR
ProSafe VPN Client)
PCs
