DG834G Reference Manual
4-4 Wireless Configuration
v3.0, September 2005
Understanding Wireless Settings
To configure the Wireless interface of your ADSL modem router, click the Wireless link in the
main menu of the browser interface. The Wireless Settings menu will appear, as shown below:
The following parameters are in the Wireless Settings menu:

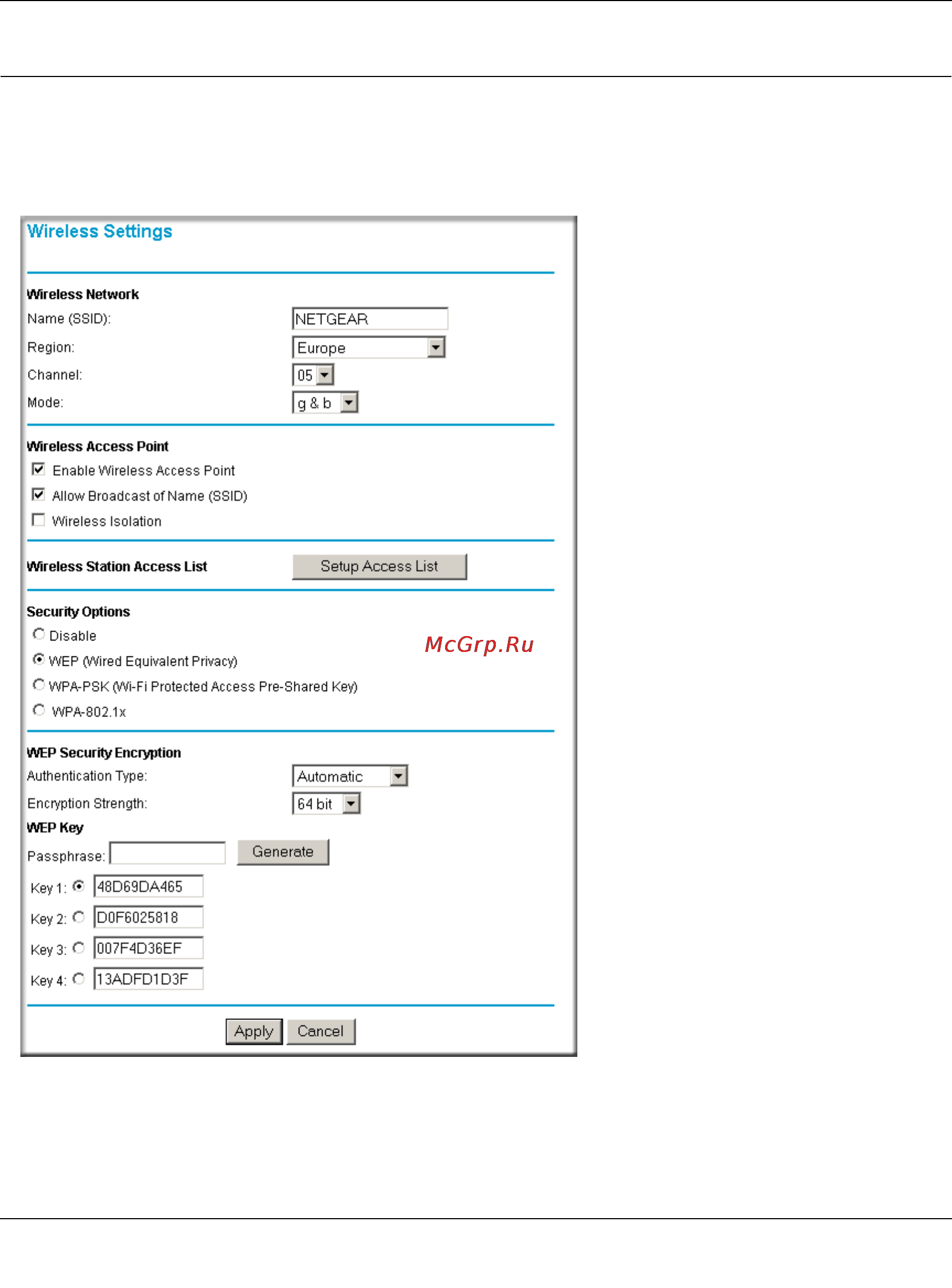

Figure 4-2
