DG834G Reference Manual
C-18 NETGEAR VPN Configuration
v3.0, September 2005
2.
Click Apply when done to get the VPN Policies screen.

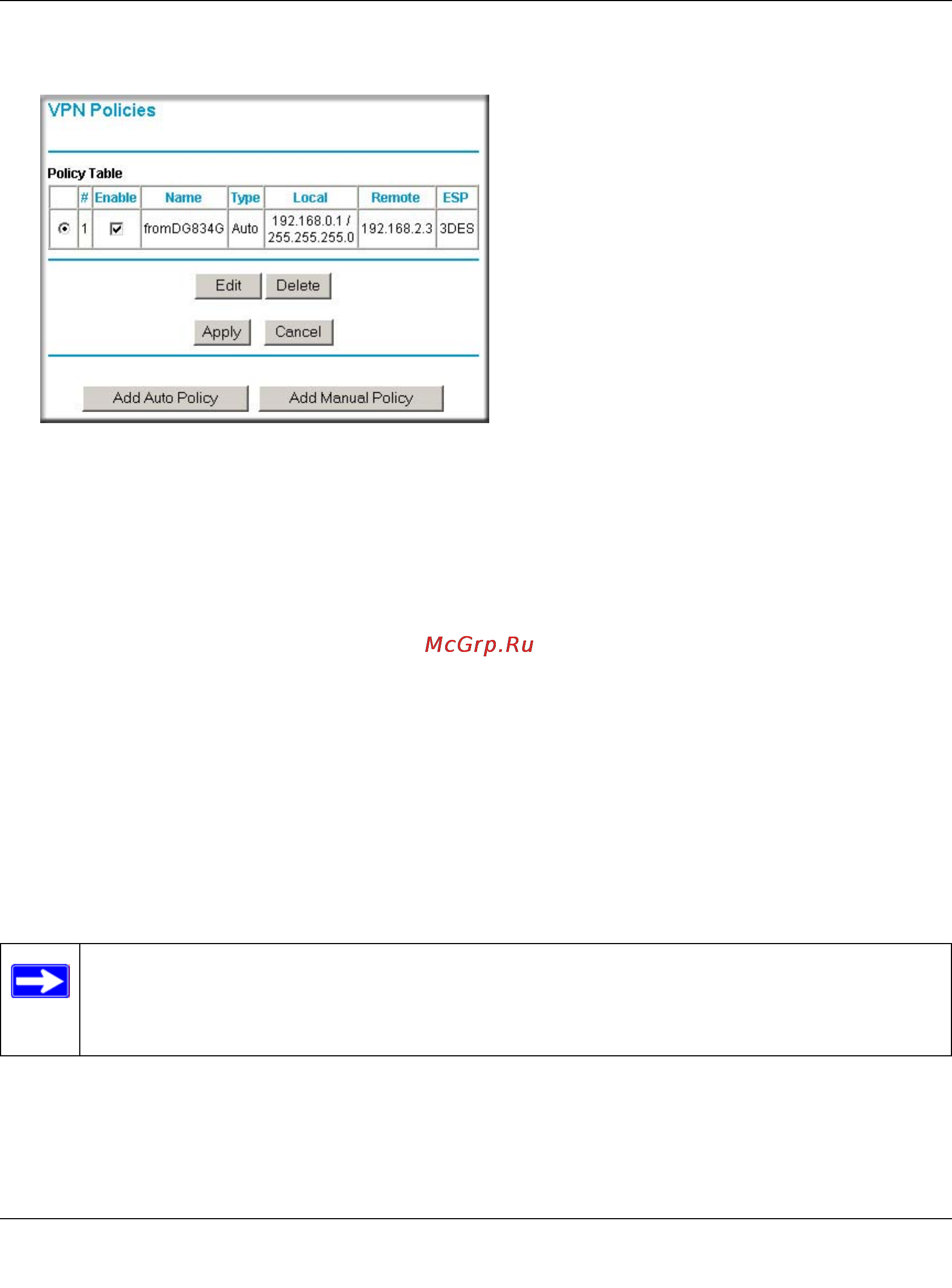

Figure C-14: VPN Policies screen
To view or modify the tunnel settings, select the radio button next to the tunnel entry and click
Edit.
Step 2: Configuring the NETGEAR ProSafe VPN Client on the
Remote PC at the Telecommuter’s Home Office
This procedure describes how to configure the 54 Mbps Wireless ADSL Modem Router Model
DG834G. We will assume the PC running the client has a dynamically assigned IP address.
The PC must have a VPN client program installed that supports IPSec (in this case study, the
NETGEAR VPN ProSafe Client is used). Go to the NETGEAR website (http://www.netgear.com)
and select VPN01L_VPN05L in the Product Quick Find drop-down menu for information on
how to purchase the NETGEAR ProSafe VPN Client.
1. Install the NETGEA ProSafe VPN Client on the remote PC and reboot.
a. You may need to insert your Windows CD to complete the installation.
Note: Before installing the 54 Mbps Wireless ADSL Modem Router Model DG834G
software, be sure to turn off any virus protection or firewall software you may be
running on your PC.
