DG834G Reference Manual
C-4 NETGEAR VPN Configuration
v3.0, September 2005

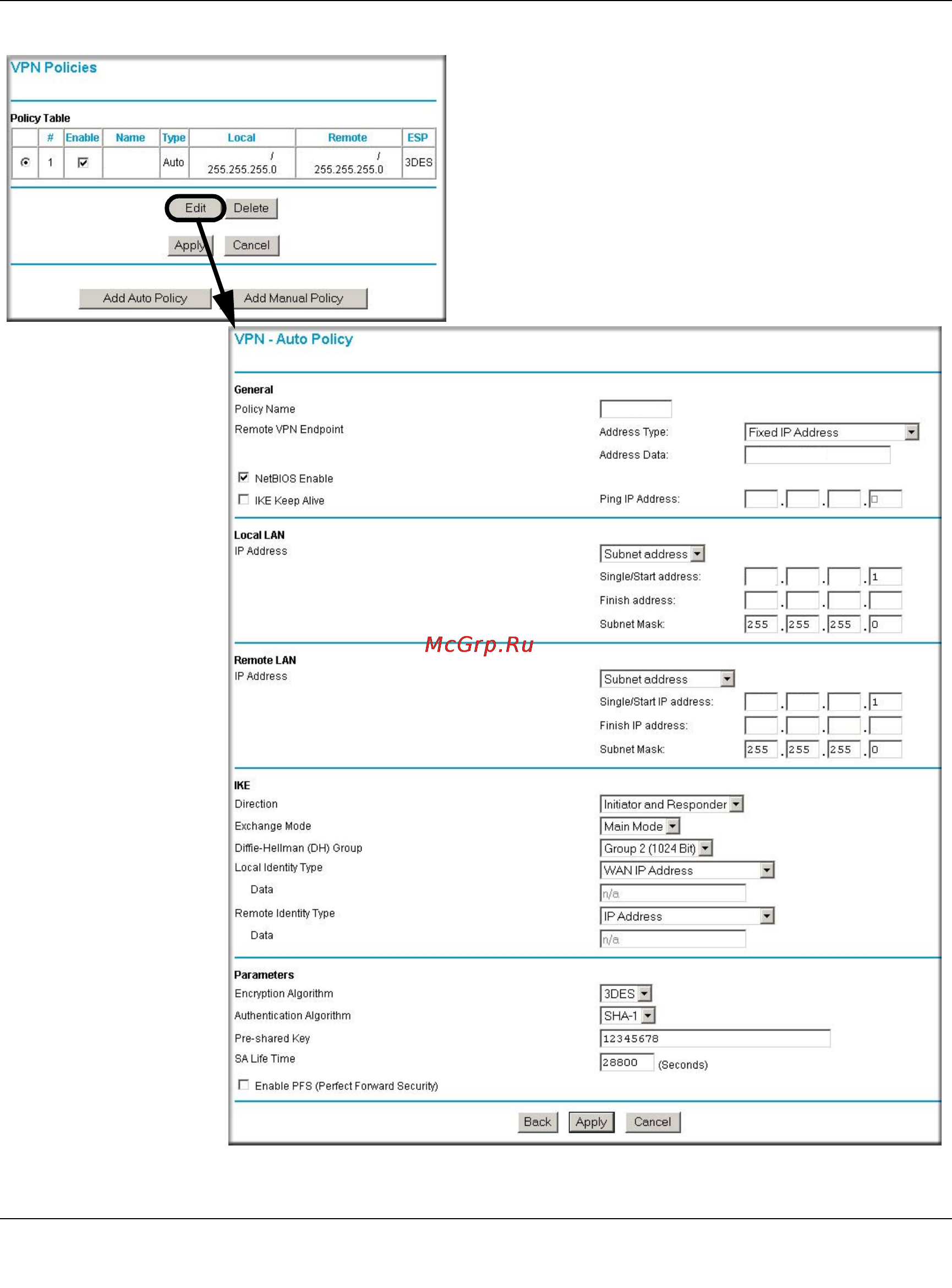

Figure C-2: Viewing and editing the VPN parameters of the DG834G at gateway A
toFVL328
10.5.6.1
172.23.9.1
toFVL328
22.23.24.25
10
10 5 6
172 23 9
Click VPN Policies under
Advanced - VPN to invoke
this screen
