Netgear DG834G [142/204] Deactivating a vpn tunnel
![Netgear DG834G [142/204] Deactivating a vpn tunnel](/views2/1018049/page142/bg8e.png)
DG834G Reference Manual
8-32 Virtual Private Networking
v3.0, September 2005

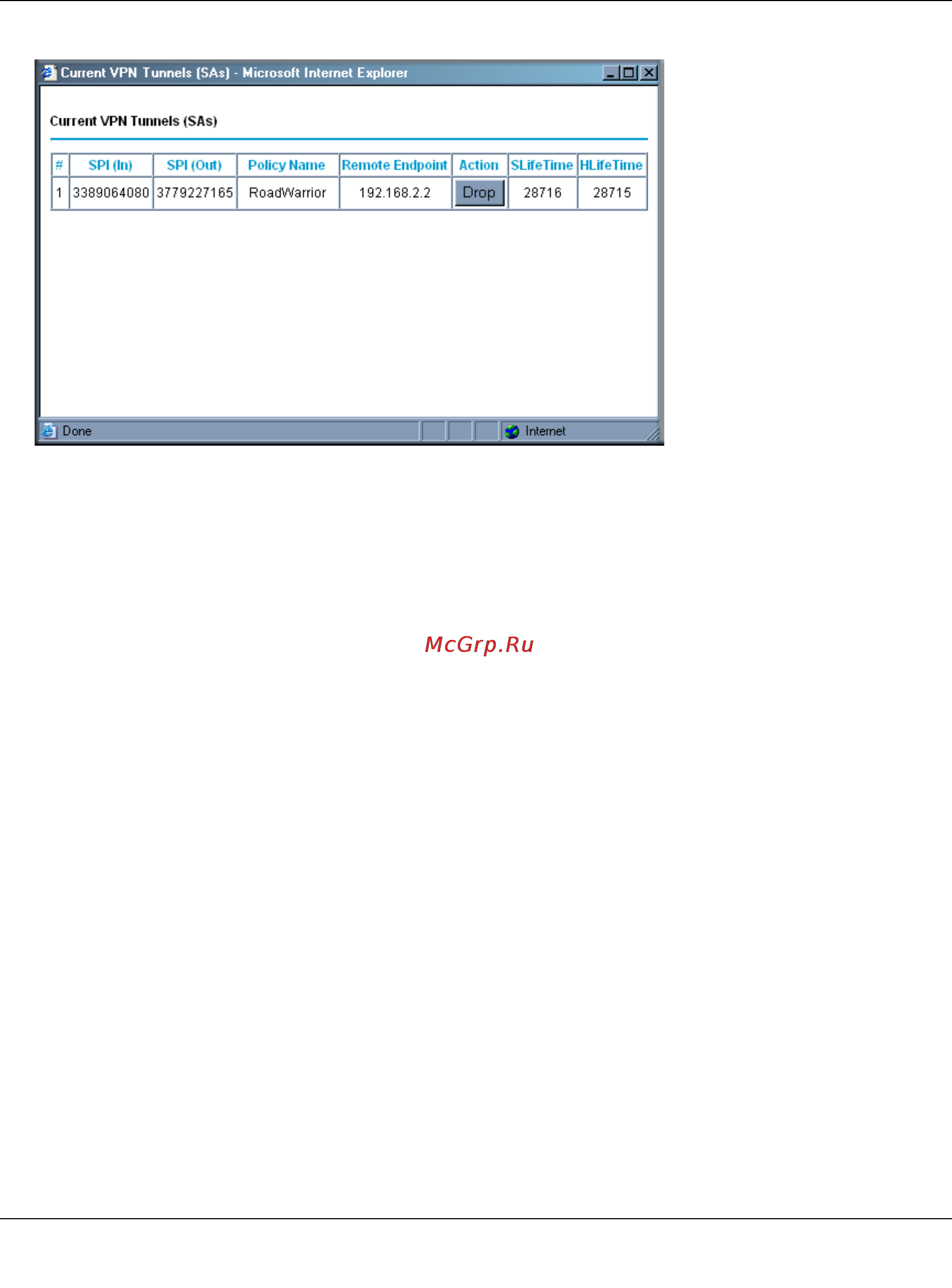

Figure 8-35: Current VPN Tunnels (SAs) Screen
Deactivating a VPN Tunnel
Sometimes a VPN tunnel must be deactivated for testing purposes. There are two ways to
deactivate a VPN tunnel:
• Policy table on VPN Policies page
• VPN Status page
Using the Policy Table on the VPN Policies Page to Deactivate a VPN Tunnel
To use the VPN Policies page to deactivate a VPN tunnel, perform the following steps:
1. Log in to the ADSL Modem Router.
